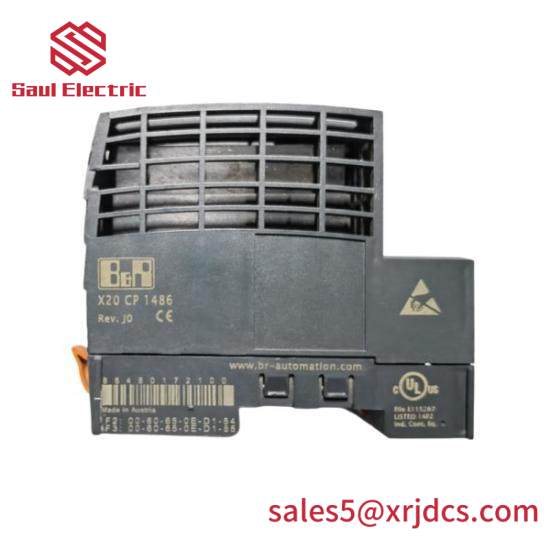

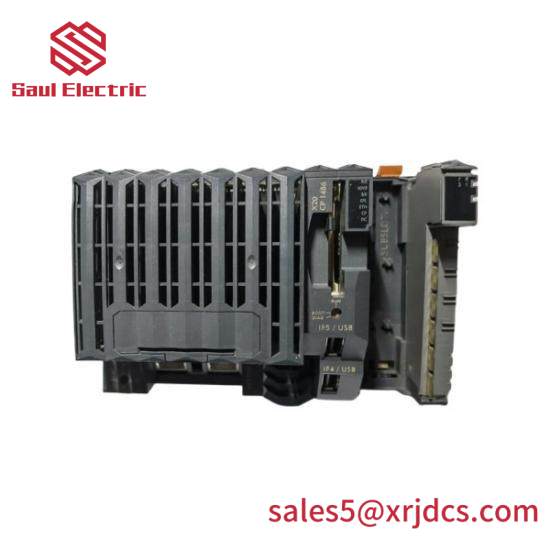

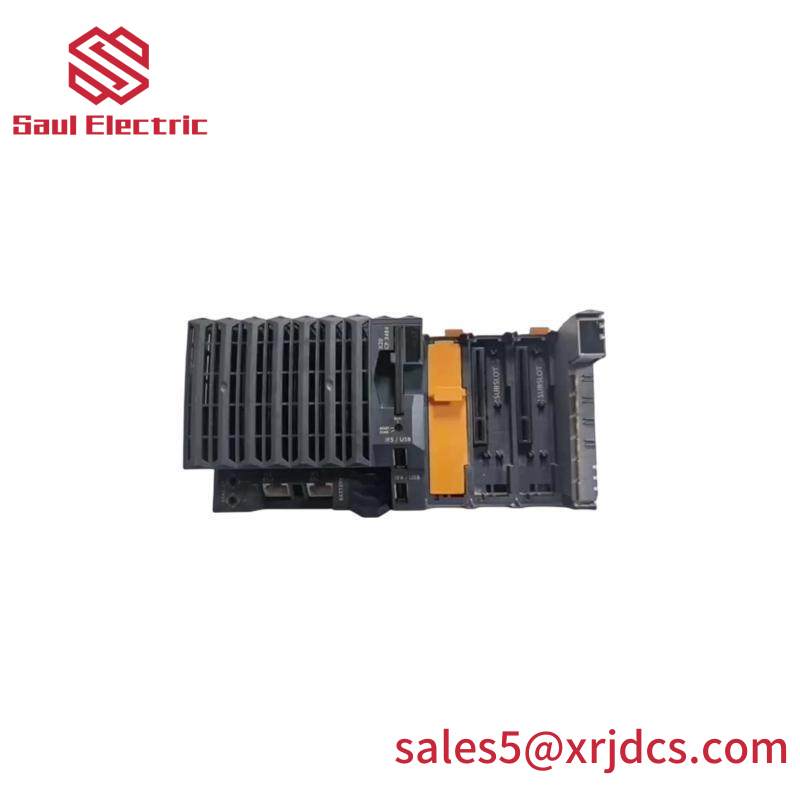

B&R X20CP1486 – Intel x86-Based CPU Module with Integrated I/O Processor for Industrial Automation

Interface 1:1x RS232

Interface 2:1x Ethernet

Interface 3:1x POWERLINK (V1/V2)

Interface 4:2x USB

Interface 5:1x X2X Link

Processor Type:Intel x86-based, 100 MHz-compatible CPU

Onboard Memory:CompactFlash as removable application memory

Power Consumption:Internal I/O: 0.6 W

Input Voltage:24 VDC -15% / +20%

Input Current:Max. 2.2 A

RAM:32 MB SDRAM

Fanless:Yes

Dimensions:Compact design suitable for space-constrained environments

    The B&R X20CP1486 is a highly advanced Intel x86-based CPU module designed specifically for industrial automation. With its powerful 100 MHz-compatible processor and 32 MB of SDRAM, this module delivers outstanding performance for demanding applications. Its compact design includes onboard Ethernet, POWERLINK, and USB interfaces, providing versatile connectivity options for seamless integration into existing systems. Additionally, the X20CP1486 supports a wide range of I/O configurations through its single slot for modular interface expansion, ensuring adaptability to various industrial settings. The module is protected to IP20 standards and operates within a temperature range of 0°C to +40°C, making it suitable for a variety of harsh industrial environments. Key features include status indicators for CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, and battery, allowing for easy monitoring and maintenance. Whether you’re working on extruder control, conveyor systems, or other industrial automation projects, the B&R X20CP1486 is the ideal choice for reliable and efficient operation.
