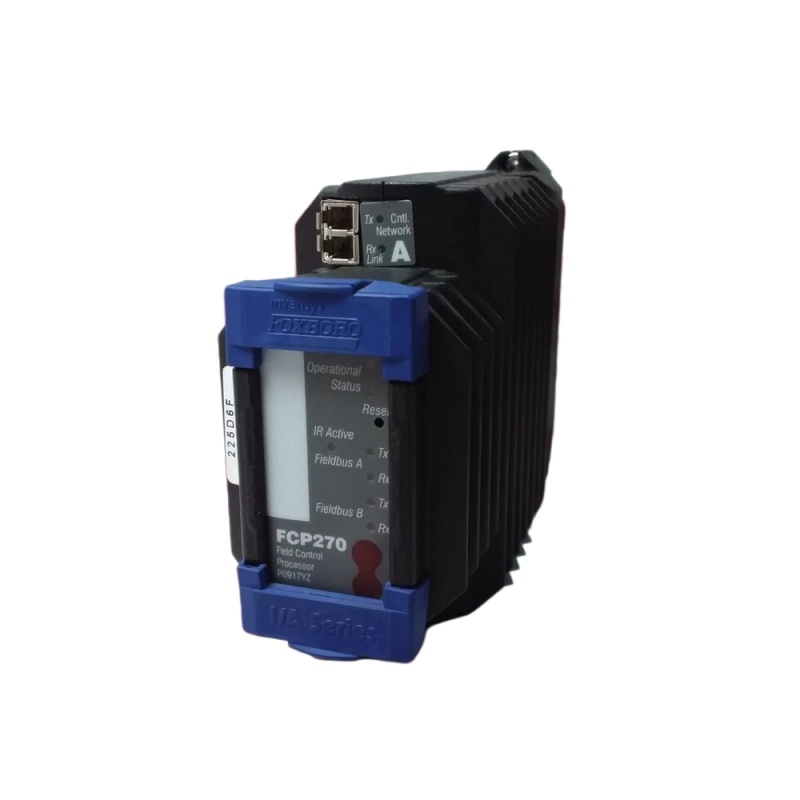

Foxboro FCP270 P0917YZ Field Control Processor – Product Overview

The Foxboro FCP270 P0917YZ is a high-performance Field Control Processor (FCP) designed for the Schneider Electric Foxboro I/A Series® and Foxboro Evo™ Distributed Control Systems (DCS). It delivers advanced process control, data acquisition, and alarm management for mission-critical industrial applications.

? Key Features

✔ High-Performance Processing

• Advanced microprocessor architecture for fast execution of control logic
• Supports up to 4000 control blocks and high-speed processing cycles
• Ensures precise real-time control in complex industrial environments

✔ Flexible I/O Integration

• Supports:
  • Up to 32 × 200 Series FBMs
  • Up to 128 FBMs with FEM100 expansion
  • Up to 64 × 100 Series FBMs
• Enables scalable system design for small to large automation systems

✔ Fault-Tolerant Architecture

• Redundant dual-module configuration (optional)
• Seamless switchover without process interruption
• Online firmware updates supported without shutdown

✔ Advanced Communication

• Fiber optic 100 Mbps Ethernet connectivity
• Supports HDLC fieldbus (2 Mbps & 268 Kbps)
• Compatible with distributed control network architectures

✔ Rugged Industrial Design

• Die-cast aluminum enclosure for harsh environments (Class G3)
• Wide operating temperature range: 0°C to +60°C (or extended up to –40°C to +70°C depending on version)
• Suitable for non-vented field enclosures

? Technical Specifications

• Model: FCP270 P0917YZ
• Type: Field Control Processor
• Memory: 16 MB SDRAM / 32 MB Flash
• Power Supply: 24 V DC (typical)
• Power Consumption: 8.5 W max
• Dimensions: 147 × 51.5 × 114 mm
• Weight: Approx. 0.6 kg

? Core Functions

• Real-time process control (PID, sequence, batch control)
• Data acquisition and historical data logging
• Alarm detection and event management
• Remote configuration and maintenance
• Integration with SCADA and third-party systems

? Applications

The FCP270 P0917YZ is widely used in:

• Oil & Gas and petrochemical plants
• Power generation facilities
• Chemical processing industries
• Water and wastewater treatment
• Heavy industry and manufacturing

? Advantages

• High reliability with fault-tolerant design
• Scalable architecture for expanding systems
• Strong environmental adaptability
• Seamless integration with Foxboro DCS platforms

? Conclusion

The Foxboro FCP270 P0917YZ Field Control Processor is a robust and reliable controller engineered for demanding industrial automation environments. With its fault-tolerant architecture, flexible I/O scalability, and high-speed processing capabilities, it is an ideal solution for ensuring continuous, safe, and efficient plant operations.
