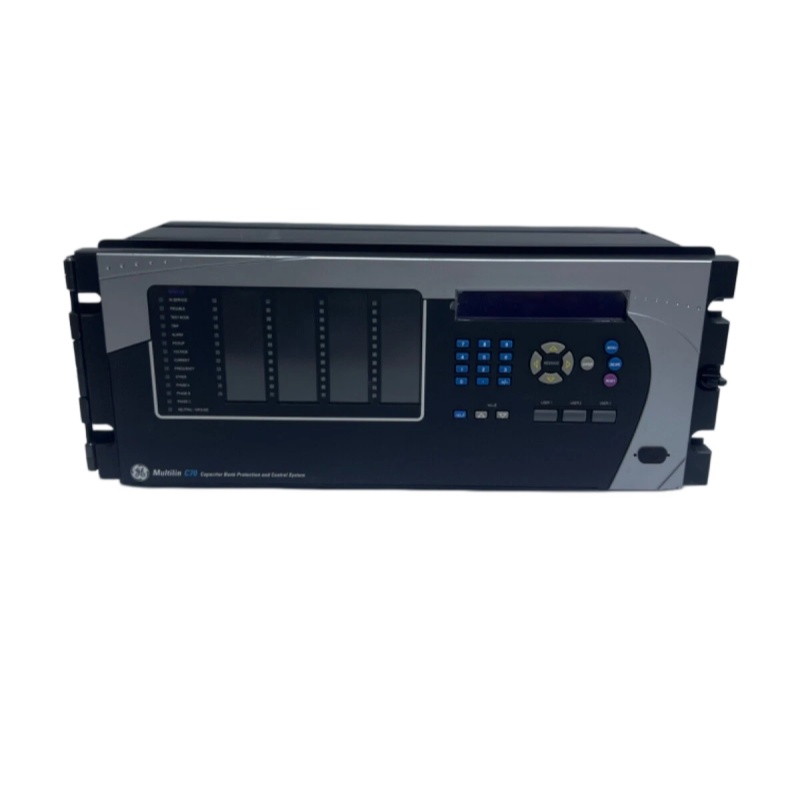

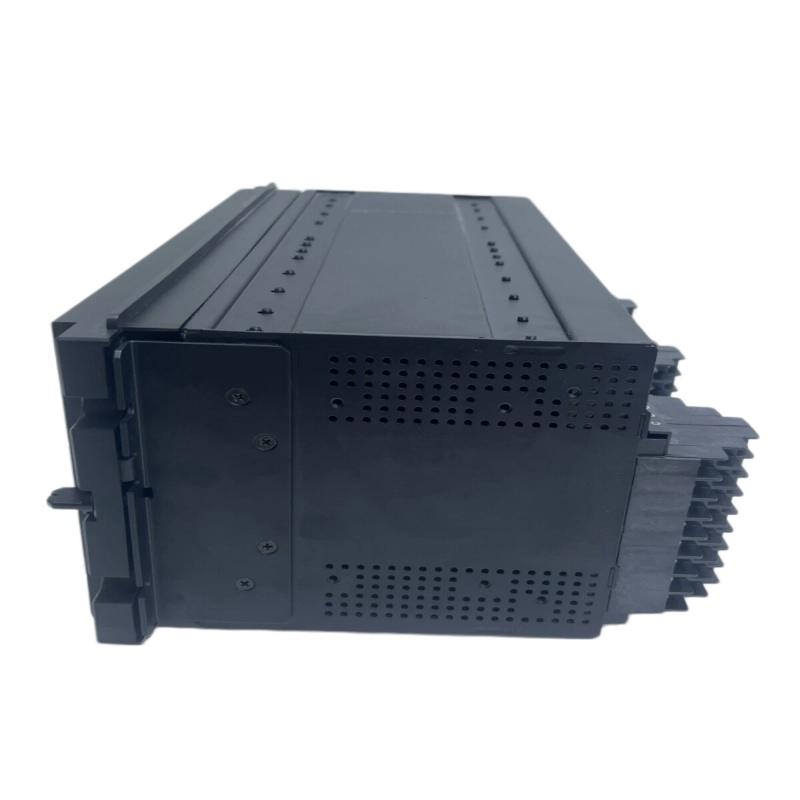

GE Multilin C70TC3HKHF8NH6DM8VP67U67W67 Capacitor Bank Protection Relay – Product Overview
The C70TC3HKHF8NH6DM8VP67U67W67 is part of the Multilin C70 Universal Relay series from GE Vernova, engineered for advanced capacitor bank protection, control, automation, and monitoring in modern power systems. Built on the proven UR (Universal Relay) platform, the C70 provides a complete solution for utilities, substations, and industrial facilities requiring reliable voltage and reactive power control.
Product Description
The Multilin C70 relay is a high-performance digital protection device designed specifically for shunt capacitor bank applications. It integrates protection, control, metering, monitoring, and communications into one compact platform, reducing panel space and system wiring while improving reliability and operational efficiency.
This fully configured model includes advanced I/O, communication modules, and protection packages suitable for demanding substation environments.
Key Features and Benefits
Comprehensive Capacitor Bank Protection
The C70 offers dedicated protection functions to detect and prevent capacitor bank failures and abnormal system conditions.
Protection elements include:
- Phase and neutral current unbalance protection
- Neutral overvoltage and undervoltage protection
- Phase overvoltage and undervoltage protection
- Directional and non-directional overcurrent protection
- Negative sequence voltage and current protection
- Thermal overload protection
- Breaker failure protection
- Broken conductor detection
These features help prevent equipment damage, reduce downtime, and extend capacitor bank service life.
Automatic Voltage & Reactive Power Control
The relay provides built-in automation for intelligent capacitor bank switching.
Control capabilities:
- Automatic switching based on voltage, power factor, or reactive power
- Multi-step capacitor bank control
- Time-of-day and seasonal control schemes
- Independent control of multiple capacitor bank sections
This enables improved voltage stability and power quality across the electrical network.
Advanced Monitoring and Metering
The C70 provides extensive real-time system visibility.
Monitoring features:
- Voltage, current, power, frequency, and energy metering
- Event recorder with time-stamped logs
- Oscillography and disturbance recording
- Data logging and diagnostics
- Asset health monitoring
These tools support faster fault analysis and predictive maintenance.
Flexible Automation with Programmable Logic
The relay uses FlexLogic™ programmable logic, allowing users to customize control and protection schemes.
Advantages include:
- Reduced need for external PLCs
- Custom interlocking and control logic
- Faster system response and simplified wiring
Modern Communication and SCADA Integration
Designed for digital substations and Industry 4.0 environments, the C70 supports multiple communication protocols.
Supported protocols:
- IEC 61850 Edition 1 & 2
- DNP3
- Modbus RTU / TCP
- IEC 60870-5-103 / 104
- IEEE 1588 time synchronization
Hardware communication features:
- Multiple Ethernet ports
- Process bus support
- Cybersecurity-ready architecture
Typical Applications
The C70 relay is widely used in:
- Utility substations
- Industrial power distribution systems
- Renewable energy substations
- Transmission and distribution capacitor banks
- Power factor correction systems
Technical Advantages
- Integrated protection, control, monitoring, and communications
- Reduced installation and wiring costs
- High reliability and long service life
- Flexible configuration for complex applications
- Designed for modern digital substations
Conclusion
The GE Multilin C70TC3HKHF8NH6DM8VP67U67W67 provides a complete and reliable solution for capacitor bank protection and voltage control. With advanced automation, flexible communications, and comprehensive monitoring, it is an ideal choice for utilities and industrial facilities seeking improved power system performance and reliability.
