GE DS200LDCCH1APA

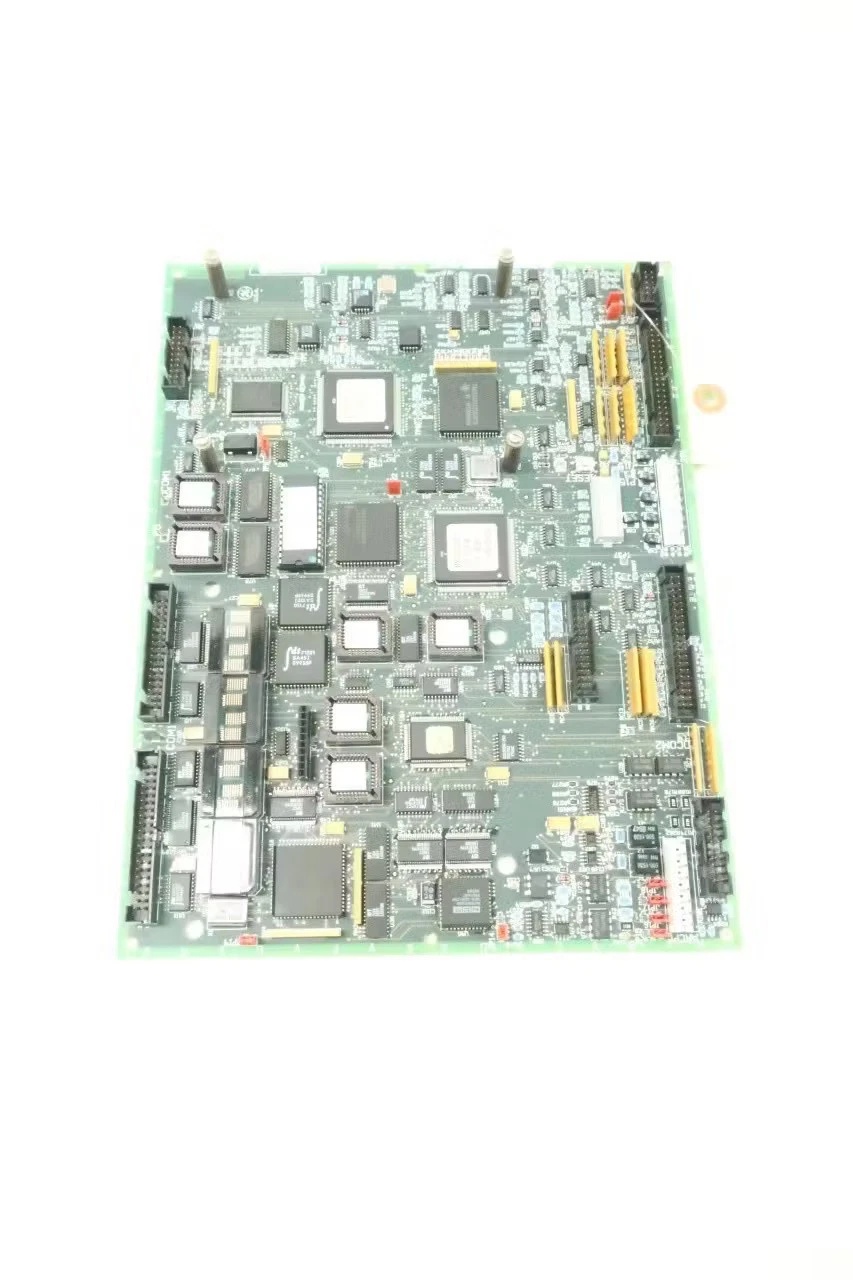

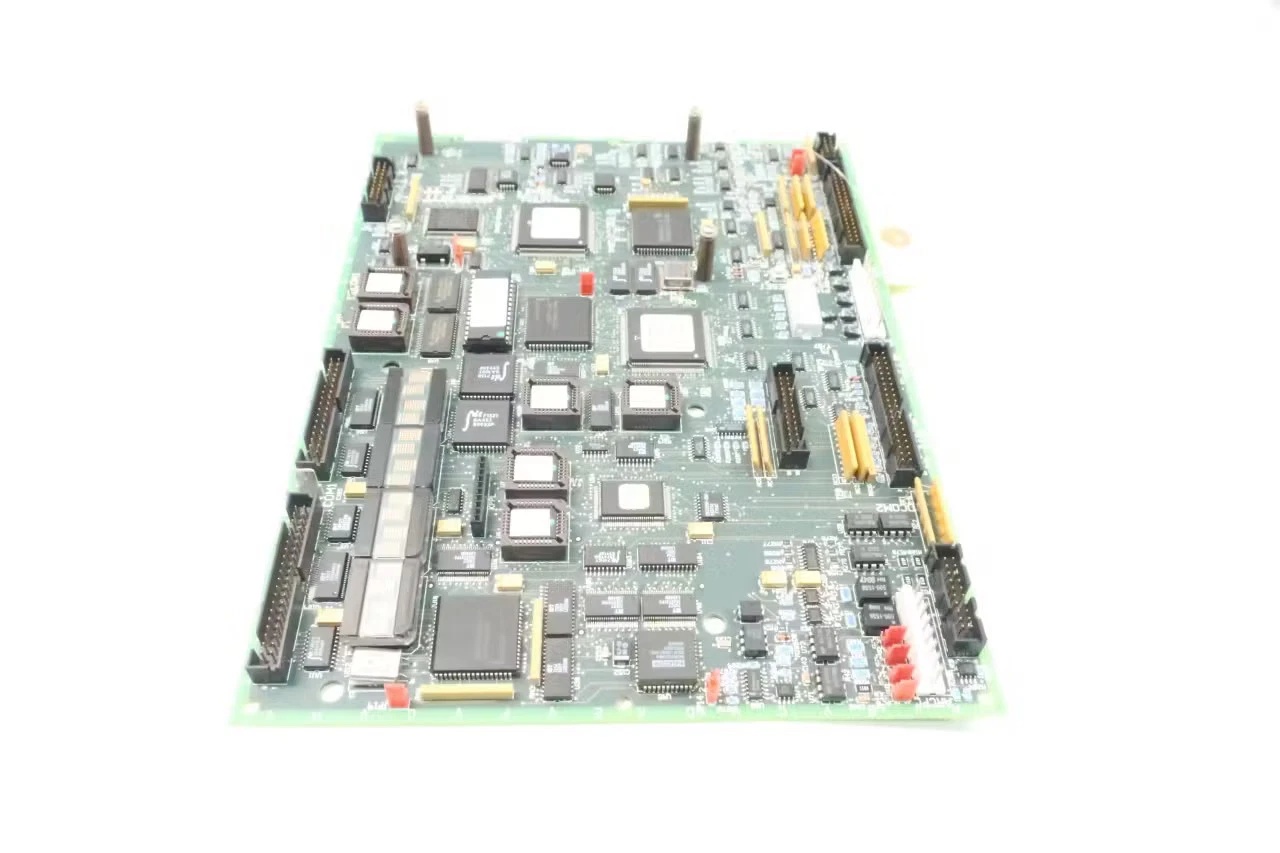

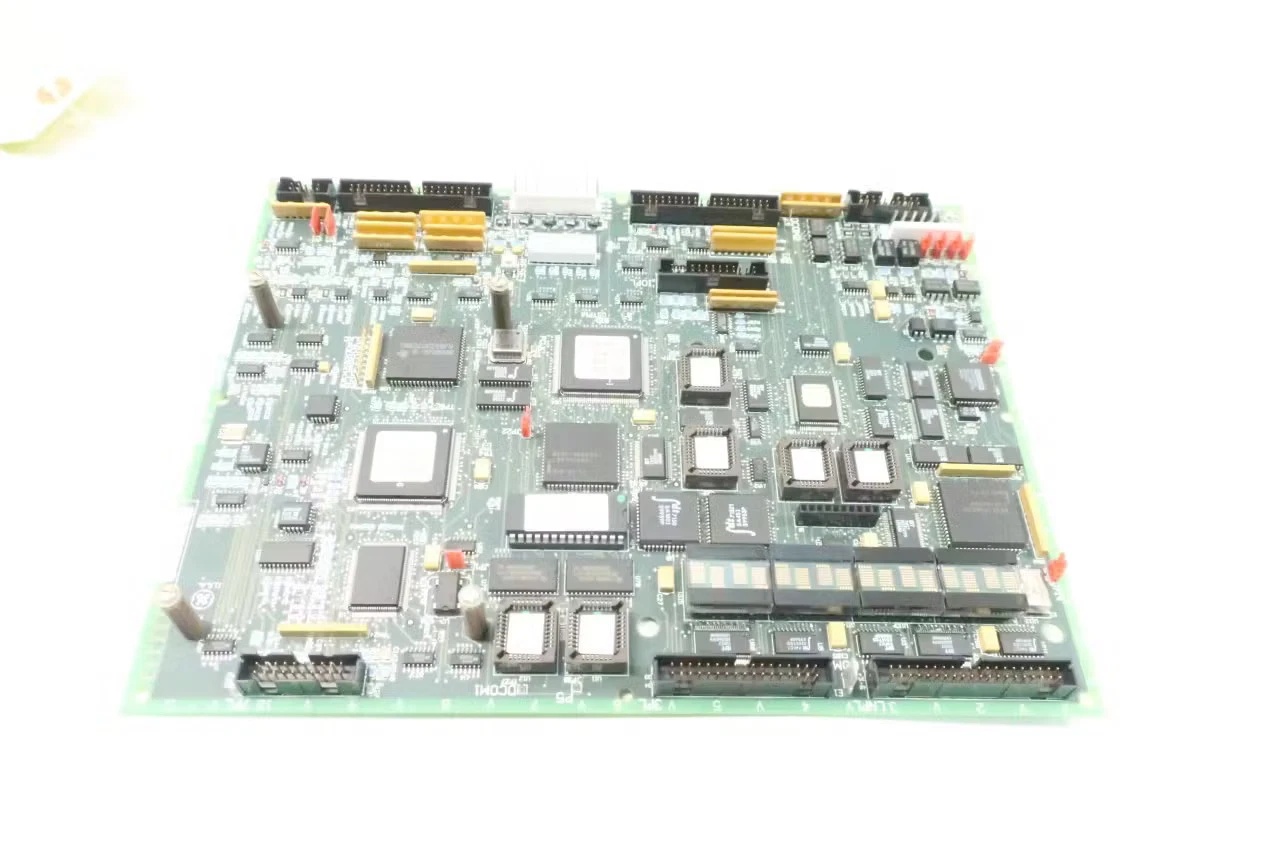

GE DS200LDCCH1APA Overview

The GE DS200LDCCH1APA is a Drive Control and Local Area Network (LAN) Communication Board (LDCC) within General Electric’s Mark V Series, primarily used in gas turbines, steam turbines, and combined-cycle power plants for drive control and I/O communication in heavy-duty turbine systems.

---

Key Functions

• Drive Control:
  Provides precise control of motor speed, torque, and fuel valve operation for DIRECTO-MATIC 2000 drives and exciters.
• LAN Communication:
  Enables bidirectional data exchange between the board and upper-level systems or fieldbuses (such as C-bus, CPL, Genius bus, DLAN, etc.), supporting remote diagnostics and parameter adjustment.
• Redundancy and Self-Diagnostics:
  Equipped with four microprocessors, featuring triple-redundant backup and fault detection mechanisms to enhance system reliability.
• I/O Interfaces:
  Offers approximately 10–14 I/O interfaces (including analog, digital, and communication ports) for direct connection to sensors, actuators, and network devices.

---

Technical Specifications (Typical Parameters)

Item	Specification
Manufacturer	General Electric (GE)
Series	Mark V (Speedtronic)
Part Number	DS200LDCCH1APA (also referred to as DS200LDCC H1 APA)
Function Code	LDCC (LAN Communication Control Card)
Power Supply	24 V DC
Operating Temperature	–40 °C to +85 °C
Dimensions	Approx. 220 mm × 165 mm × 25 mm (≈ 500 g)
Interfaces	RS-485 (LAN), multiple analog/digital I/O
Redundancy	Quad-core microprocessor with triple backup
Protection Rating	IP67 (dustproof and waterproof)
Certifications	IEC 60529, DIN EN 61131-2, EMC Directive 2014/30/EU
Applicable Industries	Power generation (gas/steam turbines), oil & gas, pulp & paper, food & beverage, wind energy, etc.

---

Application Scenarios

• Gas/Steam Turbine Control Systems:
  Provides real-time control and monitoring for drives and exciters.
• Combined-Cycle Power Plants:
  Ensures reliable motor control and data communication under high-temperature, high-pressure conditions.
• Wind Power and Oil & Gas Industries:
  Serves as a core communication node within control systems, supporting remote diagnostics and parameter optimization.

---

Summary

The GE DS200LDCCH1APA is a high-reliability drive control and LAN communication board designed for the Mark V turbine control system. Featuring multi-core redundancy, wide temperature tolerance, and comprehensive I/O connectivity, it enables precise drive control and robust data communication in demanding industrial environments.
