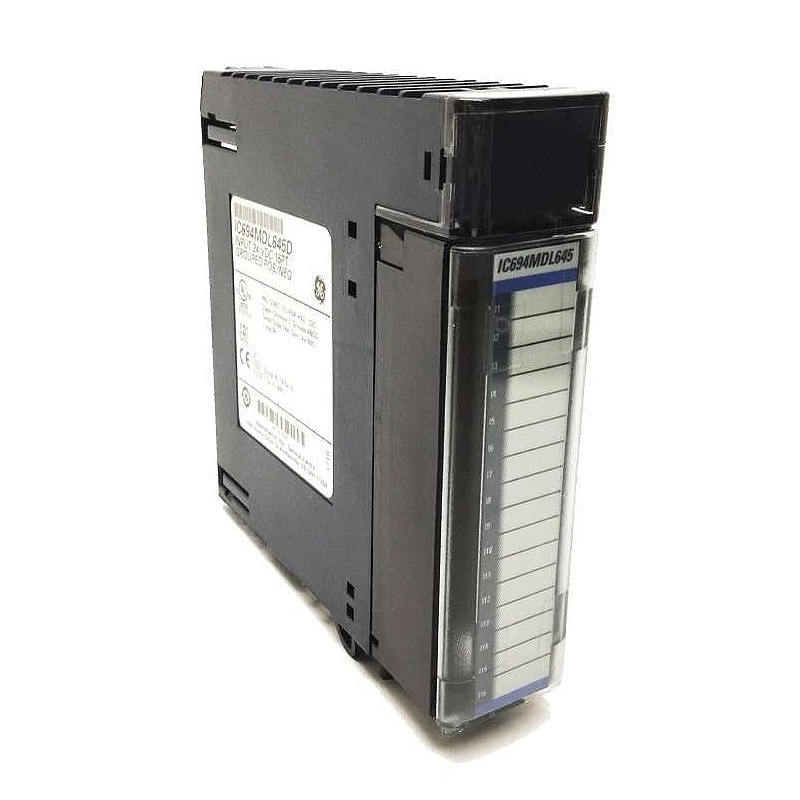

GE IC694MDL645
The GE IC694MDL645 is a digital input module from the RX3i series, originally produced by GE Fanuc (now part of Emerson Automation). Below is a detailed overview of its technical specifications based on the search results, presented for clarity and ease of reference.
⚙️ 1. Module Identification and Basic Details
- Model Number: IC694MDL645 .
- Series: Part of the GE Fanuc RX3i series/PACSystems RX3i platform .
- Manufacturer: Originally GE Fanuc, now under Emerson Automation .
- Product Type: Digital input module .
? 2. Electrical Specifications
- Input Points: The module has 24 digital inputs .
- Input Voltage: Designed for 24V DC signals .
- Rated Current: 20A .
- Isolation: Provides point-to-point isolation (1500V AC for 1 minute) and continuous isolation (250V AC) between field and backplane, as well as frame ground .
- Current Consumption:
- 7mA from the backplane’s 5V bus .
- 24mA from the 24V DC bus when all outputs are active .
? 3. Physical Specifications
- Dimensions: Compact design; specific dimensions are not fully detailed in the search results, but one source mentions a packaging size of 12*56*32 (units not specified, likely cm or mm) .
- Weight: Approximately 0.18 kg .
- Color: Typically black .
- Installation: Supports DIN rail mounting or panel mounting .
- Connectors: Uses 36-pin terminal blocks (e.g., IC694TBB032, IC694TBS032) for field wiring .
? 4. Operational Characteristics
- Operating Temperature: 0°C to 55°C .
- Storage Temperature: -40°C to 85°C .
- Humidity Range: 5% to 95% (non-condensing) .
- Output Frequency: 13 Hz .
