?️ Detailed Technical Specifications of GE IC695PSD140A

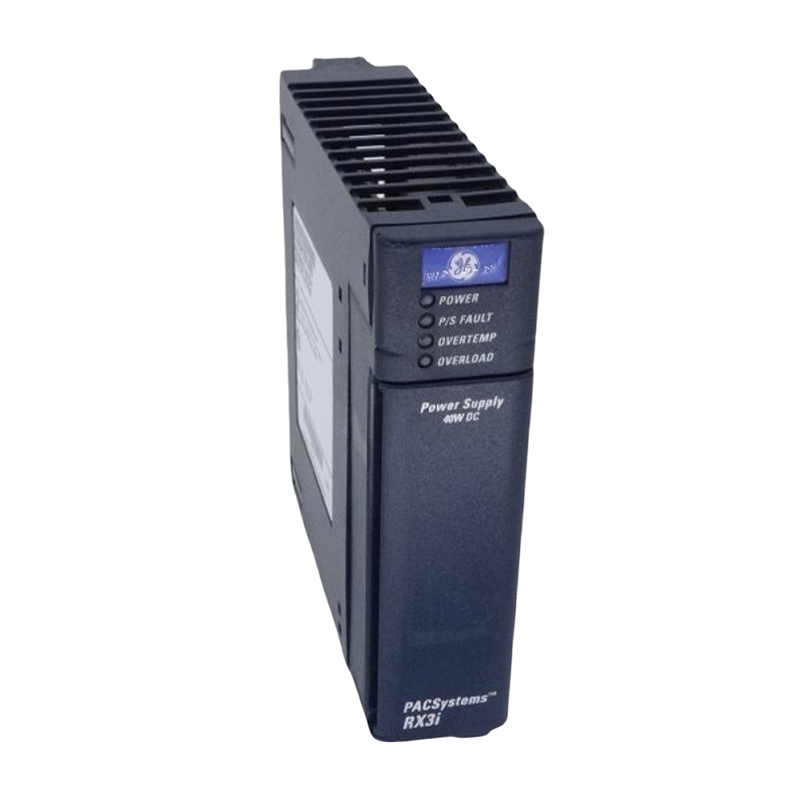

The GE IC695PSD140A is a high-performance DC input power module specifically designed for General Electric (GE) PACSystems RX3i Programmable Automation Controllers (PAC). It serves as the “power core” in industrial automation systems, providing stable and reliable power support for the entire RX3i backplane and all installed modules.

? 1. Basic Parameters

⚙️ 2. Core Features

• High Output Capacity and Reliability:
  Provides up to 140W output power and 24A of +5VDC logic current, delivering ample power to fully loaded large RX3i racks (including high-performance CPUs and multiple high-density I/O modules). Its industrial-grade design ensures high reliability under wide temperature ranges and harsh electrical environments, with an extremely long Mean Time Between Failures (MTBF).
• Excellent Voltage Regulation and High Efficiency:
  Features outstanding line and load regulation, ensuring stable output voltage even during input voltage fluctuations or drastic load changes (load regulation for +5V output is <±0.5%). The conversion efficiency of over 85% reduces energy waste and self-heating, improving overall system energy efficiency.
• Comprehensive Protection Mechanisms:
  Built-in protection circuits including overload protection, overvoltage protection, short-circuit protection, and input reverse polarity protection. These functions safeguard both the power module itself and other expensive modules on the rack. The ATEX/IECEx certified version is suitable for hazardous environments, meeting high safety standards.
• Superior Environmental Adaptability:
  The wide operating temperature range (-40°C to +70°C) allows it to adapt to harsh industrial environments such as high-temperature metallurgical workshops or low-temperature storage facilities.
• Easy Installation and Status Indication:
  Adopts a standard left-side mounting method integrated into the RX3i rack. The front panel features an LED status indicator (green “OK” light) for intuitive display of normal power operation, enabling technicians to quickly diagnose issues.
