GE IS200JPDFG1A+IS200JPDFG1AED Mark VI/Mark VIe Systems

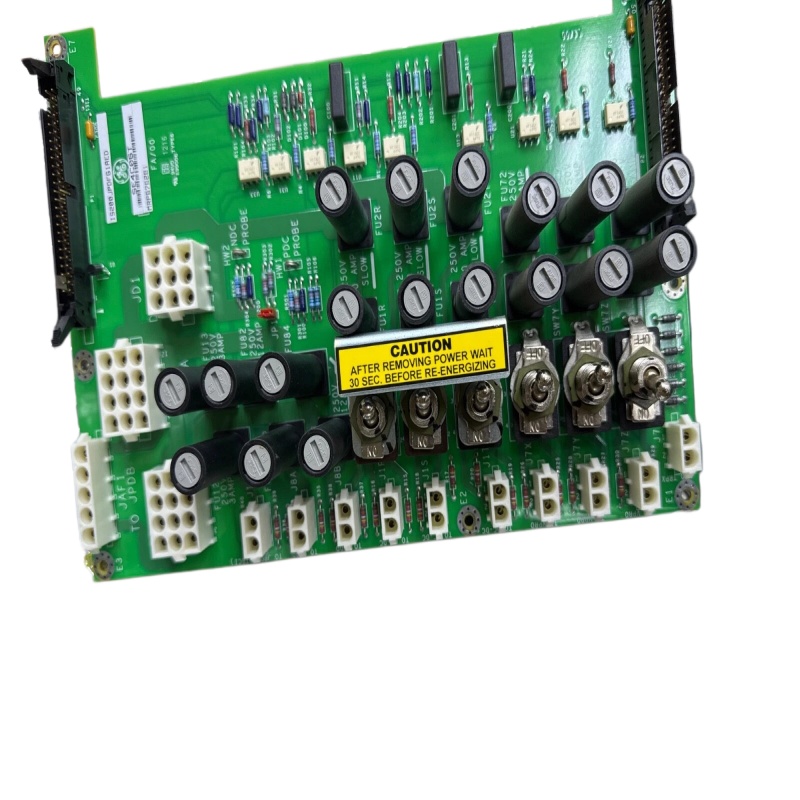

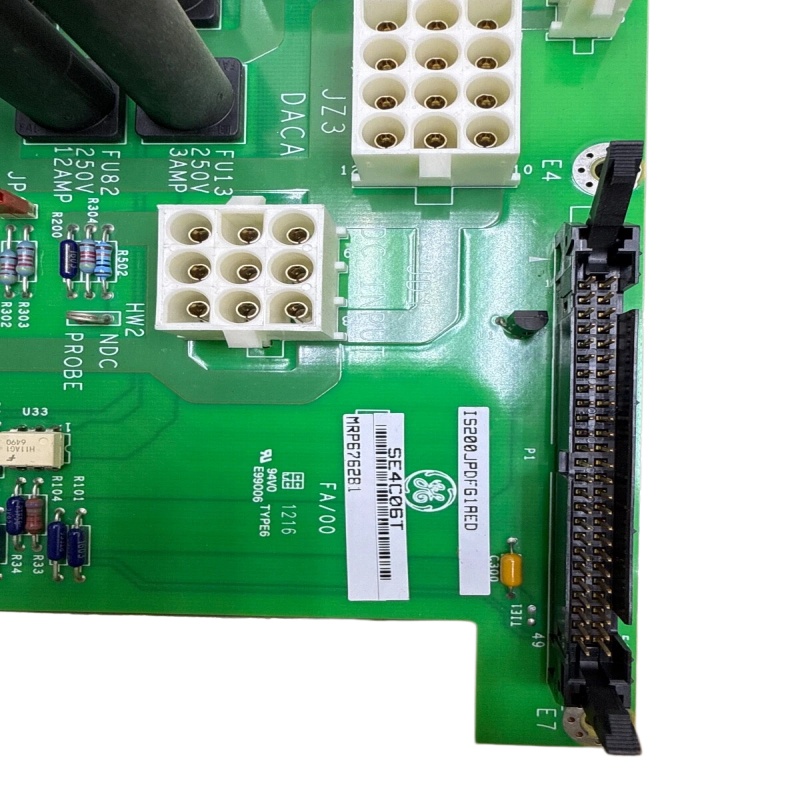

GE IS200JPDFG1A & IS200JPDFG1AED: High-Reliability DC Power Distribution Modules for Mark VI/Mark VIe Systems

The GE IS200JPDFG1A and IS200JPDFG1AED series modules are critical components within the GE Mark VI/Mark VIe control systems. These power distribution modules (PDMs) are widely used in industrial automation, heavy-duty turbine management, data center power supply, and other high-demand applications.

1. Core Definition & Key Differences

IS200JPDFG1A

Positioning: This version is part of the IS200 series, commonly referred to as IS200JPDFG1A+ or IS200JPDFG1ACA.
Function: As a Power Distribution Module (PDM), it is primarily responsible for distributing DC power from the main supply to multiple loads.
Features: Built with a metal chassis and equipped with DC-rated circuit breakers, input filters, current-limiting resistors, and series diodes for enhanced protection.

IS200JPDFG1AED

Positioning: This is an enhanced version of the IS200JPDFG1A. The “D” in the suffix typically denotes Digital or Enhanced capabilities.
Differences: Compared to the standard A model, the AED variant offers more advanced functionality, including improved monitoring, diagnostic features, and enhanced electromagnetic compatibility (EMC).

2. Key Features & Technical Specifications

While both modules share core functionality, the AED model may include additional features such as digital signal processing for more precise control.

Power Distribution: Converts and distributes input DC voltage to multiple downstream loads, commonly used in PLC systems, control cabinets, and variable frequency drives (VFDs).
Overcurrent Protection: Prevents equipment damage by limiting excessive current flow.
Overvoltage & Undervoltage Protection: Monitors voltage anomalies and automatically disconnects power to safeguard sensitive components.
Short-Circuit Protection: Instantly cuts off power in the event of a short circuit to prevent catastrophic failure.
Isolation Protection: Provides electrical isolation to enhance overall system safety and reliability.

3. Common Applications

These modules are ideal for environments requiring high reliability and redundant power management:

Industrial Automation Control Systems: PLC panels, VFD control cabinets.
Heavy-Duty Turbine Management: Gas and steam turbine control systems (specifically designed for GE Mark VI and Mark VIe platforms).
Data Centers & Communication Equipment: Used to distribute regulated DC power, ensuring stable operation of servers and network infrastructure.

4. Conclusion

Both the GE IS200JPDFG1A and IS200JPDFG1AED are high-reliability DC power distribution modules designed for demanding industrial environments. The primary distinction lies in the AED version’s enhanced digital monitoring and diagnostic capabilities.
