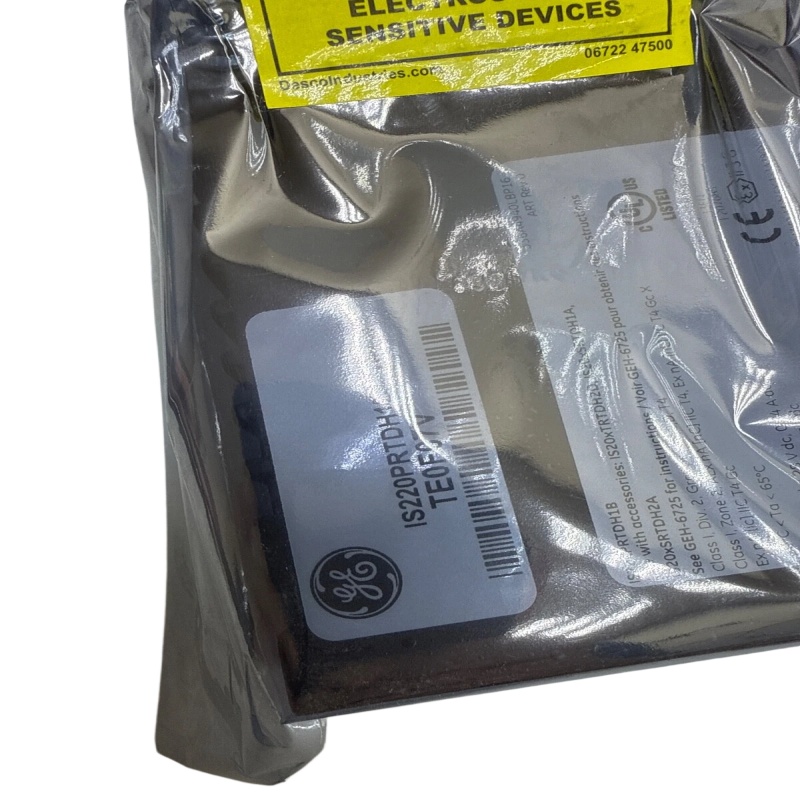

GE IS220PRTDH1B — Overview
GE IS220PRTDH1B is an RTD (Resistance Temperature Detector) input I/O pack designed for the GE Mark VIe / Mark VIeS turbine control system. It is widely used in gas turbines, steam turbines, power plants, and heavy industrial automation where accurate temperature monitoring is critical.
1) Basic Information
- Manufacturer: General Electric (GE)
- Model: IS220PRTDH1B
- Series: Mark VIe / Mark VIeS
- Product Type: RTD Input Module / I/O Pack
- Function: Industrial temperature measurement & monitoring
This module collects temperature signals from RTD sensors and sends the data to the turbine control system for protection, monitoring, and control.
2) Main Functions
Temperature acquisition
- Designed to read platinum RTDs such as:
- Pt100
- Pt200
- Pt500
- Pt1000
Industrial communication
- Interfaces RTD terminal boards with the Mark VIe control network.
- Connects to one or two I/O Ethernet networks.
Turbine protection role
Typical monitored temperatures:
- Bearing temperature
- Stator winding temperature
- Lube oil temperature
- Exhaust and process temperatures
These measurements are essential for trip protection and performance optimization.
3) Key Features
High-precision measurement
- 16-bit A/D conversion for accurate temperature monitoring
- High measurement accuracy and noise immunity
Multiple RTD channels
- Up to 8–10 RTD inputs per pack (depending on configuration)
- Terminal boards can expand to 16 RTD inputs
Hot-swap capability
- Can be replaced without shutting down the system, reducing downtime.
Industrial reliability
- Galvanic isolation of RTD circuits
- LED diagnostics and self-test functions
- Designed for harsh environments
- 4) Technical Specifications (Typical)
-
Parameter Value RTD types Pt100 / Pt200 / Pt500 / Pt1000 Wiring 2-wire & 3-wire A/D resolution 16-bit Network ports Dual RJ45 Ethernet Power consumption ~2 W Operating temperature approx. −30°C to +65°C Mounting DIN rail via terminal board Certification UL non-hazardous location approved
- 5) Compatible Terminal Boards
- Commonly used with:
- IS200TRTDH2D
- IS200SRTDH1A
- IS200SRTDH2A
- These boards handle field wiring from RTD sensors.
- 6) Typical Applications
- The IS220PRTDH1B is widely used in:
- Power generation
- Gas turbine temperature monitoring
- Steam turbine protection
- Oil & Gas / Petrochemical
- Process temperature control
- Equipment safety monitoring
- Heavy Industry
- Metallurgy
- Chemical plants
- Refining systems
- 7) Simple Summary
- The IS220PRTDH1B is a high-reliability RTD temperature input module in GE’s Mark VIe turbine control platform. Its main job is to collect precise temperature data from RTD sensors and feed it to the turbine control system, ensuring safe and efficient operation of critical equipment.
