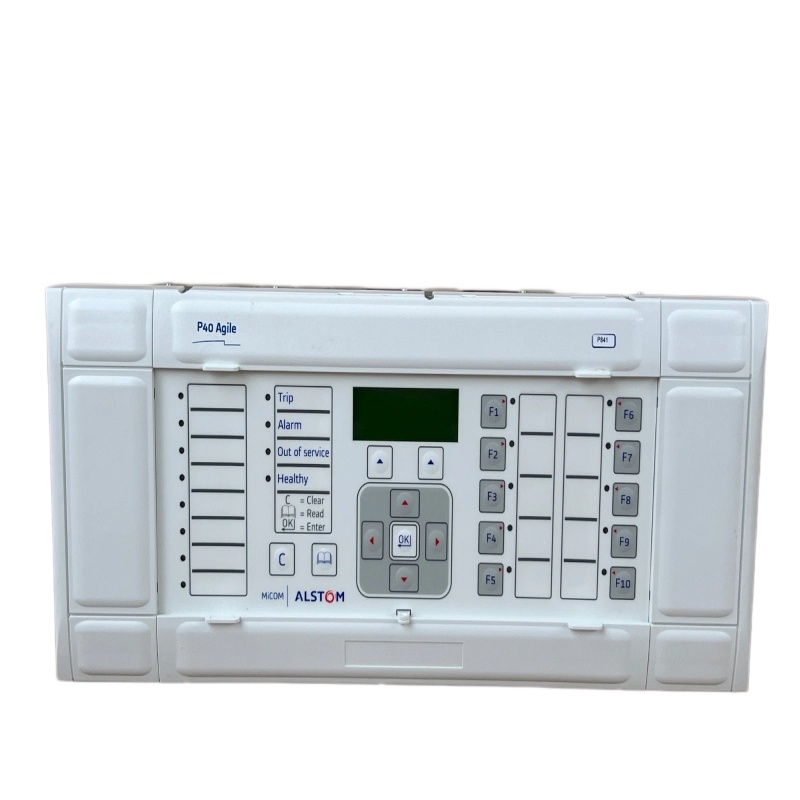

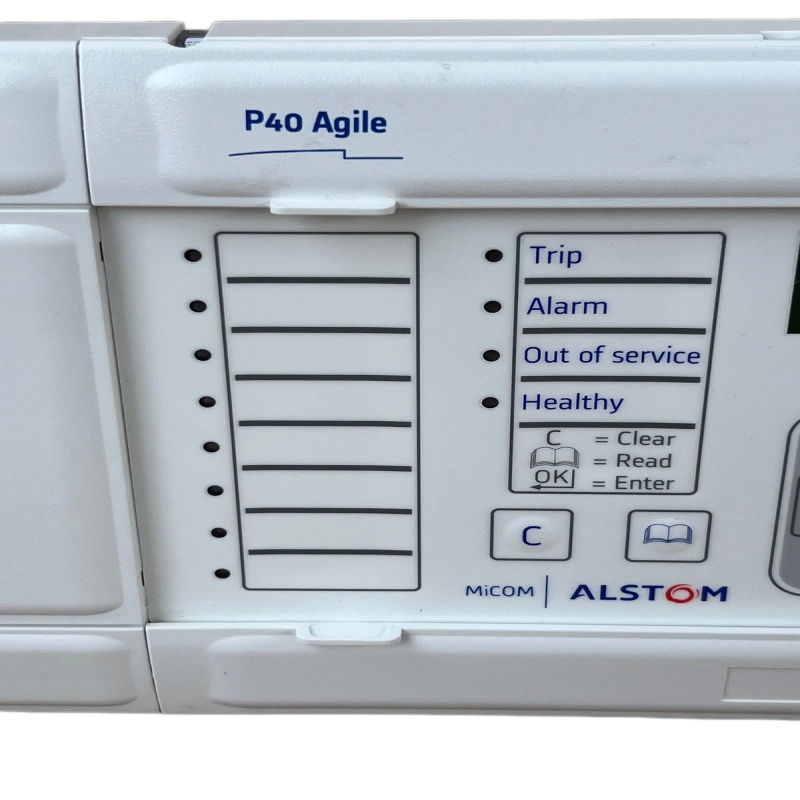

GE P84193NC6M0760M MiCOM P841 Line Differential Protection Relay

The GE P84193NC6M0760M belongs to the MiCOM P40 Agile series from GE Grid Solutions. It is a high-performance line differential protection relay designed for high-voltage and extra-high-voltage transmission systems. This model is widely used in substations, power plants, and industrial power networks where fast and secure protection is essential.

The P841 series is a mature and proven protection platform that has been deployed in utility networks worldwide.

Product Overview

The MiCOM P841 is designed as primary protection for transmission lines, delivering high-speed fault detection and advanced communication capabilities for modern digital substations.

Typical voltage levels supported:

• 66 kV to 765 kV transmission lines
• Long overhead lines and underground cables
• Multi-terminal transmission systems

This relay is typically installed as Main Protection (87L) in utility protection schemes.

Key Protection Functions

Line Current Differential Protection (87L)

The P841 provides fast and selective differential protection for transmission lines using advanced algorithms and high-speed sampling.

Main capabilities include:

• Phase and earth fault detection
• High-resistance fault detection
• Weak-infeed protection
• Multi-terminal line protection
• Strong immunity to CT saturation

The relay offers high-speed tripping performance, helping reduce equipment damage and maintain grid stability.

Backup and Additional Protection

To ensure system reliability, the P841 also integrates comprehensive backup protection functions:

• Phase and earth overcurrent protection (50/51)
• Distance protection (21)
• Directional overcurrent protection (67)
• Overvoltage and undervoltage protection (59/27)
• Frequency protection (81)

This combination allows the relay to operate as a complete line protection solution.

Fault Recording and Monitoring

The relay provides extensive monitoring and disturbance analysis features:

• Fault location for rapid maintenance
• Oscillography and disturbance recording
• Sequence of Events (SOE) logging
• Harmonic and power quality analysis

These tools help engineers quickly analyze faults and improve network reliability.

Communication and Smart Substation Integration

The GE P841 is fully designed for digital and smart grid environments.

Supported communication protocols:

• IEC 61850 Edition 2
• PRP and HSR network redundancy
• DNP3, Modbus, IEC 60870-5-103
• IEEE 1588 PTP time synchronization
• IRIG-B time input

This makes the P841 ideal for modern IEC 61850 digital substations and SCADA integration.

Key Advantages

• High-speed differential protection performance
• Supports multi-terminal transmission lines
• Excellent immunity to CT saturation and network disturbances
• Integrated protection, control, monitoring, and recording
• Advanced redundant communication networking

• Typical Applications
• The GE P84193NC6M0760M is widely used in:
• Utility transmission substations
• Power generation plants
• Oil and gas facilities
• Mining and metallurgy industries
• Offshore wind and cable transmission systems

• Conclusion
• The GE P84193NC6M0760M MiCOM P841 relay is a comprehensive transmission line differential protection solution combining fast protection, advanced monitoring, and modern communication capabilities. It is a reliable choice for protecting critical high-voltage transmission infrastructure in both traditional and digital substations.
