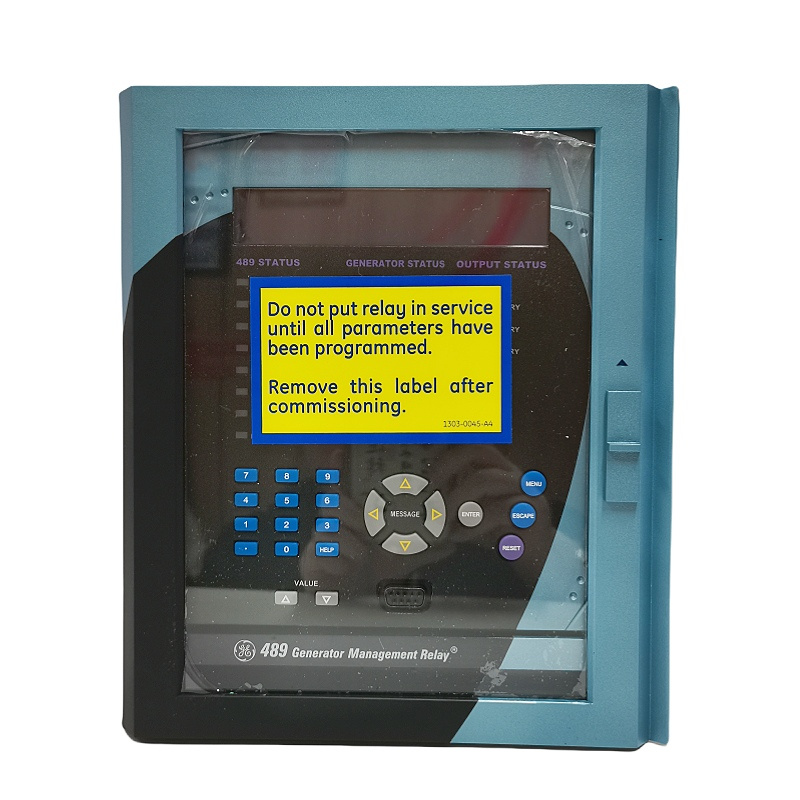

GE SR489-P5-LO-A20

The GE SR489-P5-LO-A20 is a motor protection relay from the Multilin SR Series (formerly GE Multilin). Below are its key technical parameters:

General Specifications:

• Model: SR489-P5-LO-A20
• Type: Motor Protection Relay
• Application: Designed for large motors (synchronous/asynchronous)
• Functions: Overload, short-circuit, ground fault, phase unbalance, thermal protection, etc.

Electrical Ratings:

• Supply Voltage (Auxiliary Power):
  • Standard: 85–265V AC/DC or 18–80V DC (depending on model variant)
  • A20 Suffix: Likely 120V AC/DC (confirm with datasheet)
• Current Input:
  • Phase CT Range: Typically 1A or 5A (configurable)
  • Ground CT: Optional (depends on configuration)

Protection Features:

1. Overcurrent Protection:

• • Instantaneous, Definite/Inverse Time (DTL/IDMT)

2. Thermal Overload Protection:

• • Based on I²t algorithm

3. Ground Fault Protection:

• • Sensitive ground fault detection (optional)

4. Unbalance/Undervoltage:

• • Negative sequence current (for phase unbalance)

5. Locked Rotor Protection:

• • Stalling protection with programmable delay

6. Start Protection:

• • Start inhibit & restart supervision

Control & Communication:

• Relay Outputs:
  • 4–6 programmable Form-C contacts (depends on model)
• Communication Protocols:
• Modbus RTU (RS485)
  • Optional Ethernet (SR4XX models with -E suffix)
• HMI Interface:
  • LCD display + keypad for local control

Mechanical & Environmental:

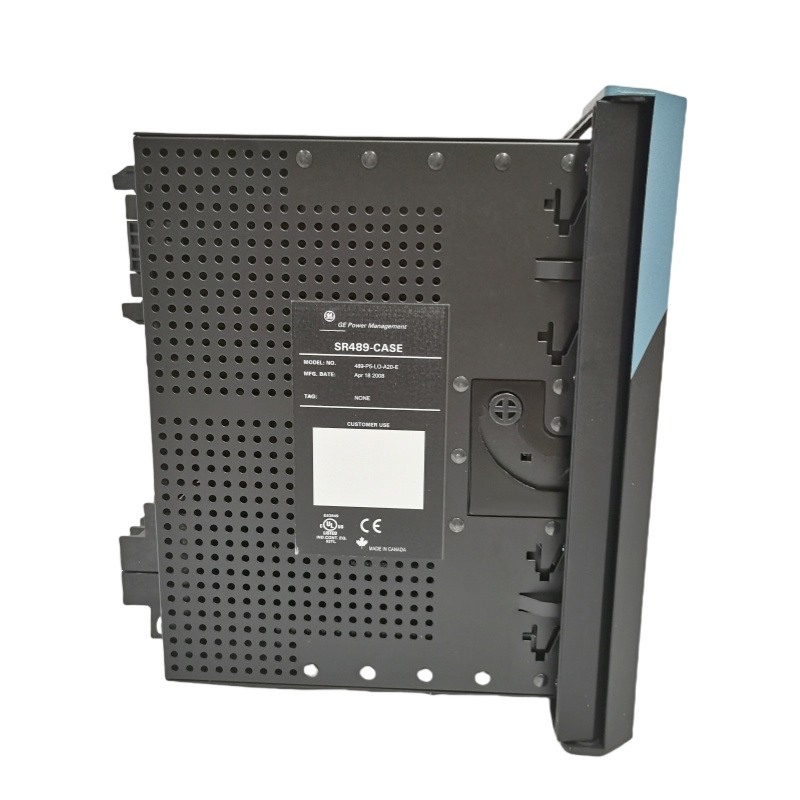

• Enclosure: Standard panel-mount
• Operating Temperature: -20°C to +60°C
• Certifications: UL, CE, IEC standards

Main Brand:

ABB       Allen-Bradley      Alstom      Bently       GE      MOOG

Schneider   Woodward   HIMA   Honeywell   Emerson   Foxboro

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Ship to you via Fedex/DHL/TNT/UPS/EMS

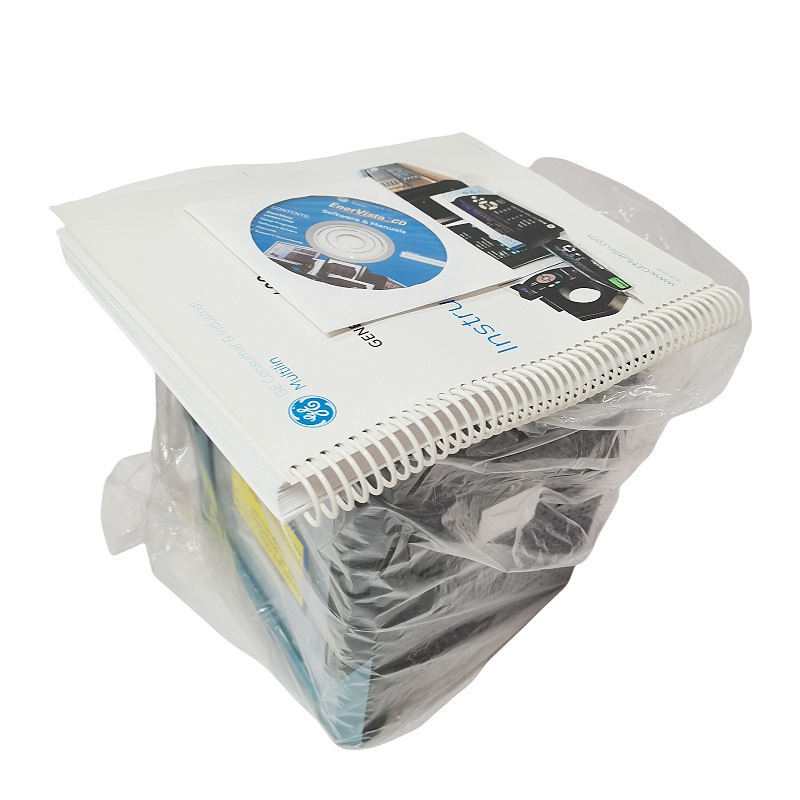

•Package: Original packing with cartons
