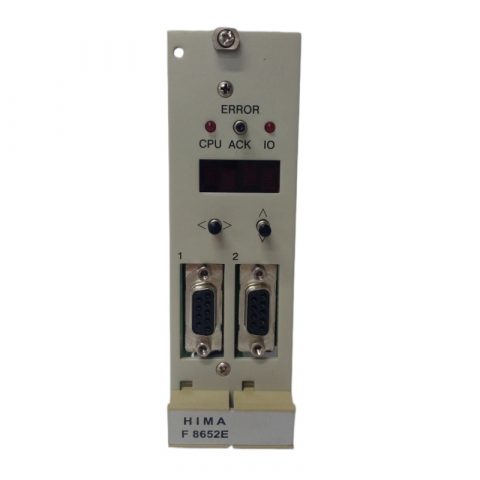

HIMA F8652E

The HIMA F8652E is a central processing module (CPU) used in HIMA safety controller systems such as HIQuad H41q/H51q. It performs safety logic execution, system monitoring, and communication within Safety Instrumented Systems (SIS). The module is designed to meet SIL 3 functional safety requirements according to IEC 61508/61511 standards.

Below are the main technical specifications.

---

HIMA F8652E Technical Specifications

Parameter	Specification
Model	F8652E
Manufacturer	HIMA Paul Hildebrandt GmbH
Product Type	Central Processing Unit (CPU) module
Application System	HIQuad H41q / H51q safety controllers
Safety Integrity Level	SIL 3 (IEC 61508 / IEC 61511)

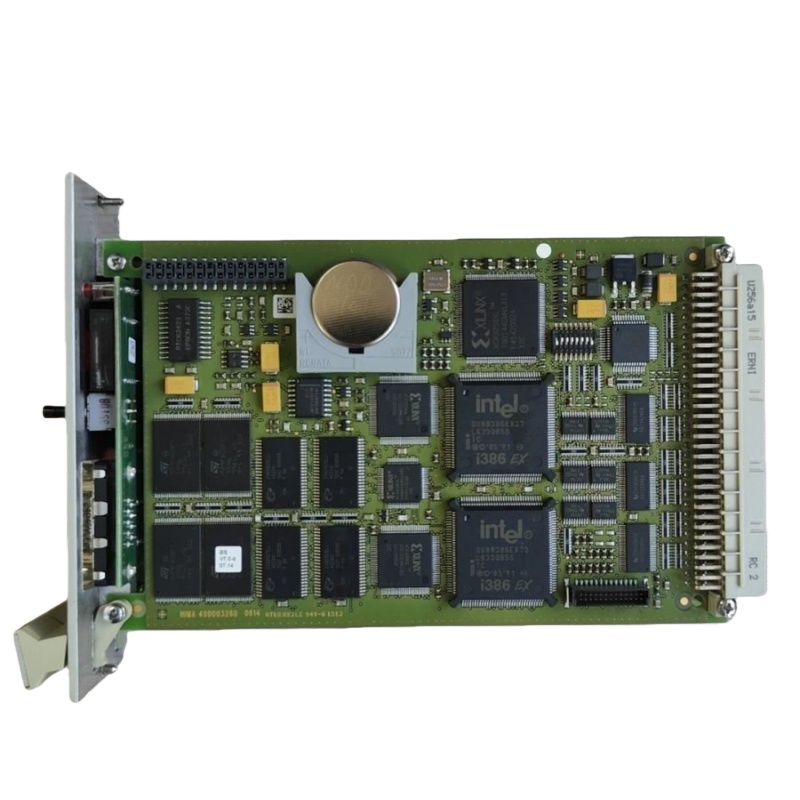

Processor	Dual Intel 386EX microprocessors
Processor Architecture	32-bit
Clock Frequency	25 MHz per processor
Operating System Memory	1 MB Flash-EPROM per CPU
User Program Memory	512 KB Flash-EPROM per CPU
Data Memory	256 KB SRAM per CPU
Communication Interfaces	2 × RS-485 serial interfaces (isolated)
Diagnostic Display	4-digit alphanumeric display + LED indicators
Watchdog Output	24 V DC fail-safe output (max 500 mA load)
Power Supply	5 V DC
Current Consumption	approx. 2000 mA
Operating Temperature	–20°C to +60°C (typical industrial range)
Storage Temperature	–40°C to +85°C
Module Width	8 TE (Eurocard format)
Dimensions	approx. 100 × 80 × 25 mm
Mounting	Rack / system chassis installation
Certification	TÜV, IEC 61508 SIL3, ATEX (depending on system)

---

Key Features

1. Dual-processor redundant architecture

• Two synchronized Intel 386EX processors ensure fault-tolerant operation.
• If one processor fails, the other maintains safe operation.

2. High safety reliability

• Designed for SIL 3 safety applications with high diagnostic coverage (>99%).

3. Comprehensive diagnostics

• Built-in diagnostic display and LED indicators.
• Continuous monitoring of CPU, memory, and communication status.

4. Fail-safe watchdog system

• Provides a 24 VDC watchdog output to ensure safe shutdown in case of system failure.

5. Industrial communication capability

• RS-485 communication interfaces enable integration with field devices and control networks.

Typical Applications

The HIMA F8652E module is commonly used in safety-critical industrial systems, including:

• Emergency Shutdown Systems (ESD)
• Fire & Gas detection systems
• Turbine protection systems
• Petrochemical and refinery safety control
• Power plant protection systems
