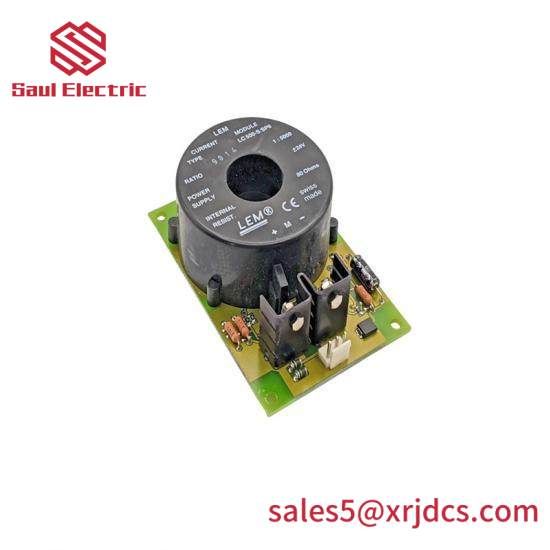

LEM LC1000-S/SP7 Current Sensor Module

Manufacturer:LEM

Model:LC1000-S/SP7

Type:Current Sensor

Accuracy:+/- 0.5% of reading

Sensitivity:1000 A

Output Signal:Analog Output (4-20 mA)

Operating Voltage Range:DC 10V to 30V

Response Time:< 2 ms

Insulation Voltage:3 kV

Temperature Range:-40°C to +85°C

Dimensions:L: 140 mm x W: 95 mm x H: 33 mm

Weight:Approximately 0.5 kg

    The LEM LC1000-S/SP7 is a cutting-edge current sensor module engineered to deliver unparalleled accuracy and reliability in demanding industrial environments. With its wide measurement range of 0 to 1000 A for both AC and DC currents, it is ideal for applications in energy management systems, power distribution, and renewable energy sources.

    Key design highlights include its robust construction, which ensures durability and long-term performance even under harsh conditions. The sensor’s high accuracy of +/- 0.5% of reading makes it an essential tool for precise monitoring and control in various industrial processes.

    Designed for ease of integration, the LEM LC1000-S/SP7 offers versatile output options including 4-20 mA and 0-10 V signals, allowing seamless connectivity with most control systems. Additionally, its fast response time of less than 1 µs ensures real-time data acquisition and quick feedback loops, crucial for efficient process control.

    The module operates within a wide operating voltage range from 15 to 30 V DC, ensuring compatibility with a broad spectrum of industrial power supplies. Its excellent frequency response up to 20 kHz allows it to capture transient events accurately, making it suitable for applications requiring high-frequency monitoring.

    Moreover, the LEM LC1000-S/SP7 is built to withstand extreme temperatures ranging from -40°C to +85°C, making it an ideal choice for outdoor and indoor installations. Its protection rating of IP65 ensures resistance to dust and water ingress, providing reliable operation in challenging environmental conditions.
