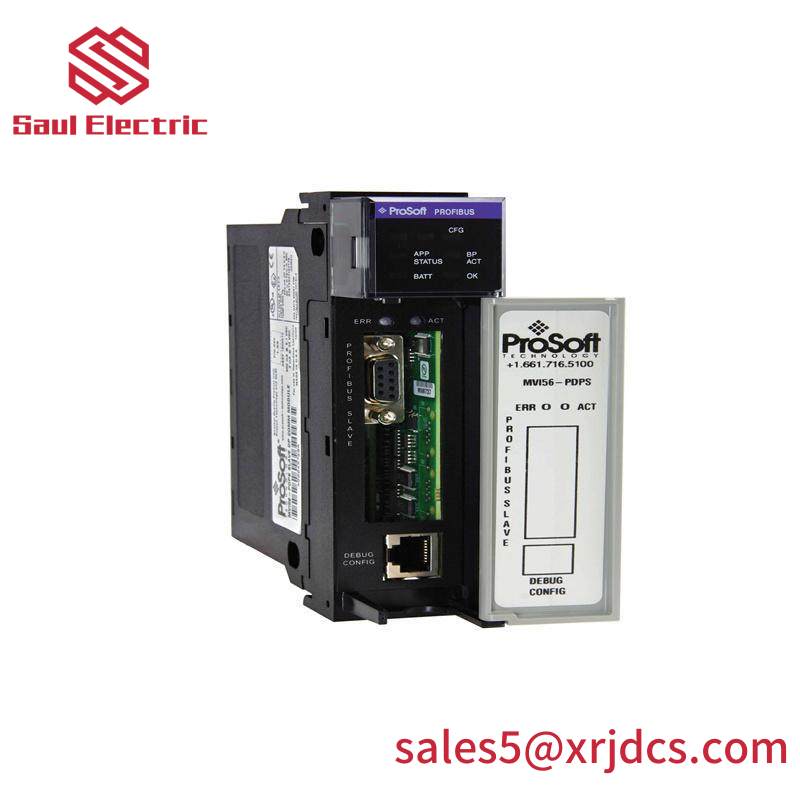

Prosoft MVI56-PDPS PROFIBUS DP Slave Communication Module

Protocol Compatibility:Profibus DP V0 Slave

Data Transfer Capability:Up to 10,000 words

Floating Point Data Support:Configurable for Enron, Daniel, etc.

Configuration/Debug Port:Serial port for PC connection

Extended Product Type:Module

Module ID:MVI56-PDPS

Prosoft Type Designation:Communication Module

    The Prosoft MVI56-PDPS Communication Module is designed to seamlessly integrate PROFIBUS DP networks with ControlLogix processors, ensuring smooth and reliable data exchange in industrial automation environments.

    Featuring advanced data mapping capabilities, users can easily configure how data is transferred and processed, enhancing system efficiency and flexibility.

    Support for floating-point data movement is provided, including configurable support for different implementations like Enron and Daniel, broadening compatibility across various industry standards.

    The serial port for PC connection enables convenient configuration, monitoring, and debugging, streamlining the setup and maintenance process for industrial operators.

    The non-volatile Compact Flash card not only stores network and module configurations but also supports quick field replacements, minimizing downtime and ensuring continuous operation.

    Equipped with the ProSoft Discovery Service (PDS), the module simplifies network discovery, automatically locating itself on the network and assigning a temporary IP address, reducing initial setup complexities.
