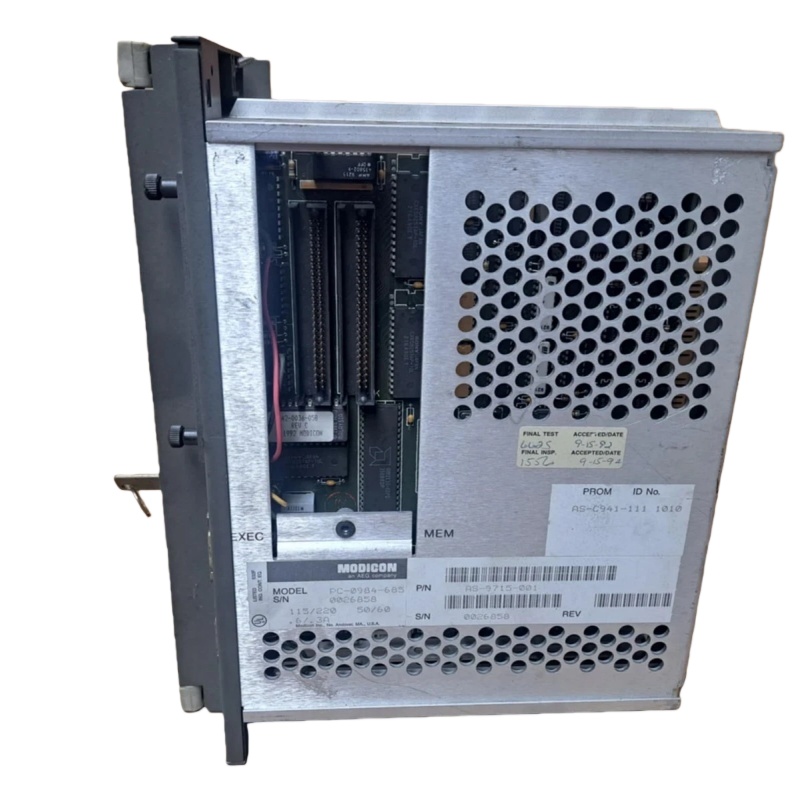

SCHNEIDER AS-9715-001

SCHNEIDER AS-9715-001 is a Modicon 685 CPU series module manufactured by Schneider Electric. It is commonly used in PLC (Programmable Logic Controller) systems. The main technical specifications and features of this model are as follows:

Mechanical durability: 30 million cycles
Maximum operating frequency: 180 cycles/min
Time constant: 28 ms
Power consumption at start-up: 5.4 W (at 20 °C)
Holding power consumption: 5.4 W (at 20 °C)
Minimum switching voltage: 17 V
Minimum switching current: 5 mA
Non-overlap time: 1.5 ms (between NC and NO contacts during energization/de-energization)
Insulation resistance: > 10 MΩ
Mechanical shock/vibration: Compliant with IEC 60068-2-27 / IEC 60068-2-6 standards (shock 10 g / 11 ms; vibration 2–4 g, up to 300 Hz)
Dimensions: 77 mm (H) × 45 mm (W) × 93 mm (D)
Weight: approx. 0.58 kg

This module features high reliability and a compact form factor, making it well suited for high-speed and precise control tasks in industrial automation systems. For detailed technical manuals or supporting software, please refer to Schneider Electric’s official product documentation or contact a local authorized distributor.
