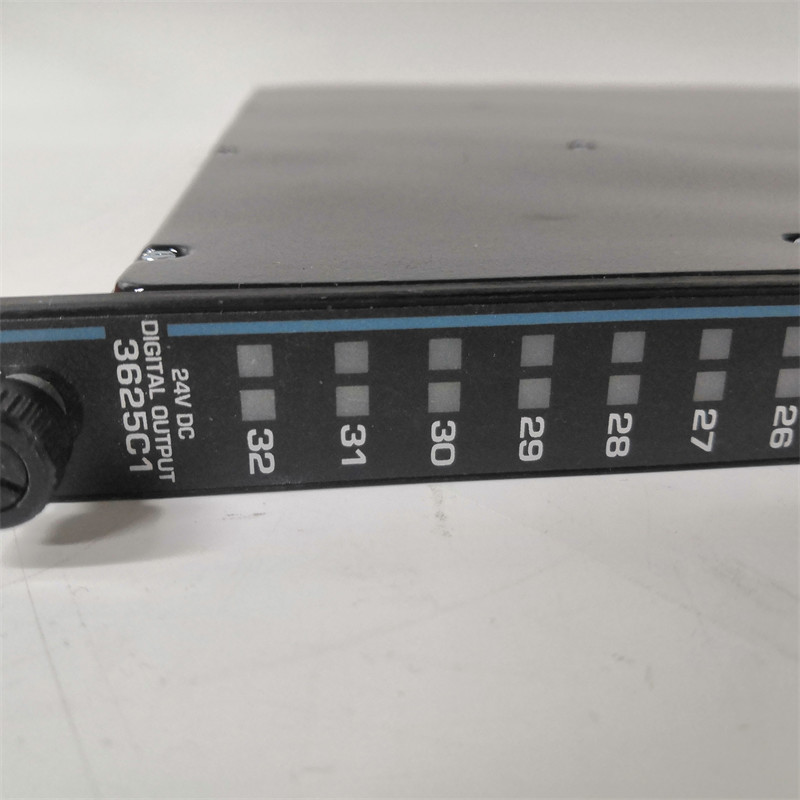

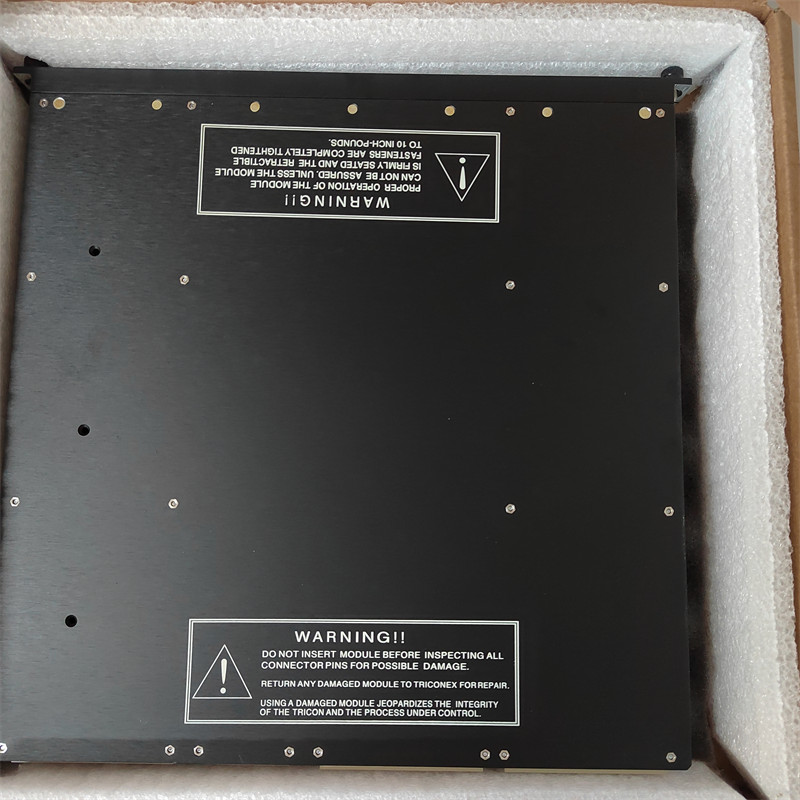

TRICONEX 3625 is a core safety output module from Schneider Electric (formerly Invensys/Triconex), primarily used for emergency shutdown and safety control in industries such as oil & gas, chemical processing, and power generation.

---

Key Features and Technical Specifications

Triple Modular Redundancy (TMR):
Three independent channels operate in parallel, using hardware-level voting to eliminate single-point failures and ensure correct execution of SIL 3 safety actions.

High Reliability:
Equipped with fault detection and isolation functions. Even if one channel fails, the system continues to operate normally, preventing false trips and latent faults.

Interfaces and Communications:

• Supports industrial communication protocols such as Modbus TCP/RTU, RS-485, and Ethernet (100 Mbps).

• Low power consumption (typical 3.5 W) and supports hot swapping.

Environmental Adaptability:
Wide operating temperature range (-40°C to +70°C), compliant with industrial protection standards such as IP67, suitable for harsh environments.

---

Typical Application Scenarios

Emergency Shutdown Systems (ESD):
Drives solenoid valves or trip relays to perform emergency shutdown when overpressure, leaks, or fire are detected.

Burner Management Systems (BMS):
Controls burner start-up and shutdown to ensure gas safety.

Compressor and Generator Protection:
Rapidly cuts off power or gas supply under abnormal conditions to prevent equipment damage.

---

Conclusion

TRICONEX 3625 is not an ordinary PLC module but a high-integrity safety output module designed specifically for safety-critical control. Its core value lies in ensuring reliable execution of critical safety actions through a TMR architecture.
