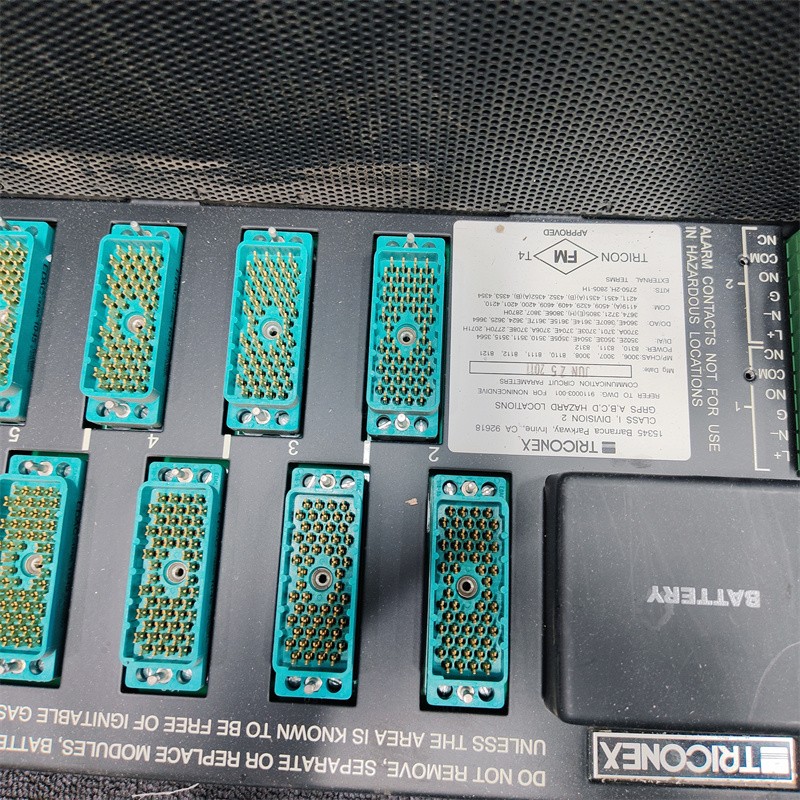

TRICONEX 8111 is one of the key products in the Triconex Safety Instrumented System (SIS) under Rockwell Automation. It usually refers to the 8111 Expansion Chassis or its corresponding 8111 Microprocessor. Its primary purpose is to expand the I/O capacity and communication capability of the control system.

1. Core Functions and Applications

TRICONEX 8111 is mainly used to overcome capacity limitations of the Triconex control system when facing large-scale data acquisition and control requirements.

• I/O Expansion: It can expand the I/O capacity of a Triconex controller to as many as 128 I/O channels, or be configured modularly according to application needs.
• Communication Module Integration: Supports the addition of extra communication modules (such as Ethernet and serial ports), enhancing data exchange between the system and external devices.
• Hot-Swappable Design: Supports hot-swapping of modules, allowing modules to be added or removed without interrupting system operation, greatly improving maintenance efficiency.

2. Key Technical Specifications

The technical specifications of TRICONEX 8111 typically include the following (exact parameters may vary slightly by version):

• Redundant Design: Built-in redundant power supplies with 1+1 dual-power redundancy, ensuring stable operation even if one power supply fails.
• Compatibility: Compatible with all Triconex controllers, including the Triconex 4000, 5000, and 7000 series.
• Environmental Protection: Uses a sealed NEMA 4X aluminum enclosure, usually rated IP65 or IP66, suitable for harsh industrial environments.
• Operating Temperature Range: –40°C to +70°C (some versions up to +85°C), suitable for both high- and low-temperature environments.

3. Typical Applications

TRICONEX 8111 is widely used in industrial applications with extremely high reliability requirements, including but not limited to:

• Petrochemical and Refining: For safety interlocks and explosion-proof control in process control systems (DCS).
• Power Generation and Nuclear Power: For turbine control in power plants and safety instrumented systems in nuclear facilities.
• Rail Transit and Offshore Platforms: For critical safety control in train automation systems (CBTC) and offshore oil and gas platforms.

4. Difference from the 8111 Microprocessor

It should be noted that “TRICONEX 8111” may sometimes refer to the 8111 Microprocessor (for example, “TRICONEX 8111 Microprocessor”), which is a highly reliable processor based on Triple Modular Redundancy (TMR), typically used with Triconex 3000-series or 4000-series controllers. However, in most industrial purchasing and market contexts, “TRICONEX 8111” more commonly refers to the Expansion Chassis.

Conclusion

TRICONEX 8111 is a high-density, modular, hot-swappable expansion chassis with redundant power supplies, designed to enhance the I/O expansion capability and system redundancy reliability of Triconex safety control systems. It is one of the key spare parts in the field of industrial automation.
