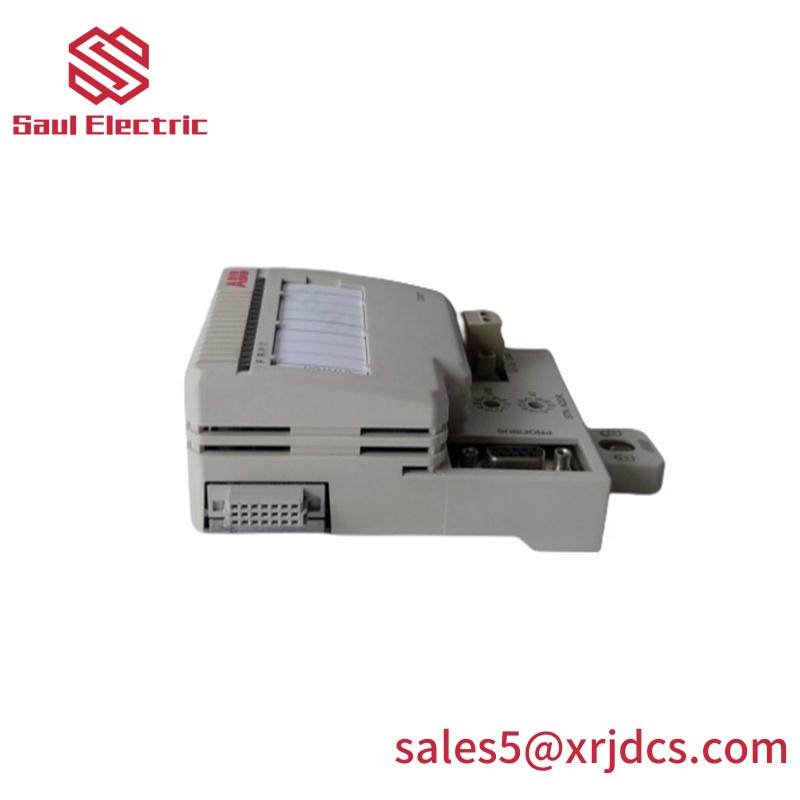

ABB YPG109E 3ASD273001B3 ANALOG INPUT BOARD

Type:Analog Input Module

Series:YPP

Model Number:YPG109E 3ASD273001B3

Channels:16

Resolution:12-bit

Input Range:0-10V or 4-20mA

Communication Protocol:DeviceNet

Power Consumption:Less than 2W

Operating Temperature:-25°C to +70°C

Mounting Type:Panel Mount

Material:Aluminum Alloy

Dimensions:100mm x 100mm x 25mm

Weight:0.2kg

    This high-performance Analog Input Board from ABB is tailored for industrial environments, offering superior accuracy and stability in harsh conditions. Its robust design ensures seamless integration into existing automation systems, enhancing operational efficiency.

    The board features a compact size with enhanced durability, making it ideal for space-constrained applications without compromising on performance. It supports DeviceNet communication protocol, facilitating easy connectivity and data exchange within complex networks.

    With its 4-channel capability, the board can efficiently manage multiple analog signals, providing real-time data for critical process monitoring and control. The wide signal range (-10V to +10V) accommodates various industrial standards, ensuring compatibility across different applications.

    The 12-bit resolution ensures high precision in signal conversion, crucial for applications requiring detailed data analysis and control adjustments. The board operates within an extended temperature range (-25°C to +60°C), making it suitable for both indoor and outdoor installations.

    Equipped with a 5V power supply, the Analog Input Board consumes minimal energy, contributing to reduced operational costs and environmental sustainability. Its compact dimensions (11.5 cm x 13.5 cm x 2.8 cm) and lightweight (0.12 kg) facilitate quick and easy installation without the need for extensive cabling or infrastructure modifications.
