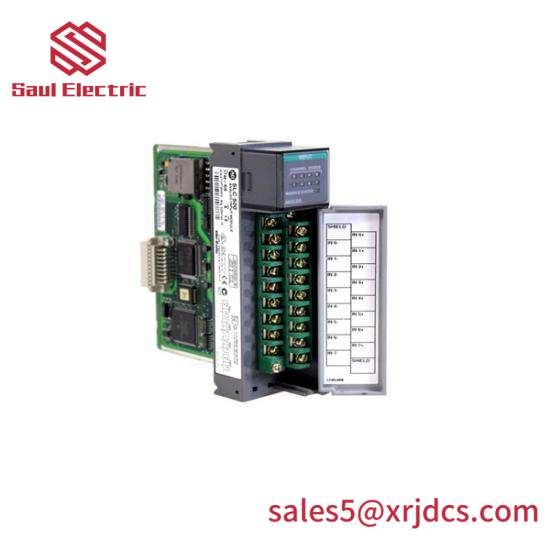

Allen-Bradley 1746-N18 Analog Input Module – High Precision, Reliable Industrial Control Solution

Brand:Allen-Bradley

Model Number:1746-N18

Module Type:Analog Input Module

Number of Channels:18

Input Voltage Range:-20 to 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS

Input Current Range:-30 to 30 mA

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range:-10 to 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    The Allen-Bradley 1746-N18 Analog Input Module is engineered to deliver exceptional performance in demanding industrial environments, ensuring accurate data acquisition for critical process control applications.

    Featuring 18 channels capable of measuring analog voltages from -20 to +20 volts DC, this module provides a high degree of precision, essential for maintaining operational efficiency and quality standards in various industries.

    Equipped with advanced communication protocols like ControlNet and DeviceNet, the 1746-N18 seamlessly integrates into complex networked systems, facilitating real-time data exchange and enabling remote monitoring and control.

    With its robust power supply range of 12 to 24 volts DC, the module ensures reliable operation under varying conditions, while its IP20 enclosure type offers protection against dust and light splashes, enhancing its durability in industrial settings.

    Offering an operating temperature range of -20°C to +60°C, the Allen-Bradley 1746-N18 is designed to withstand harsh environmental challenges, making it a versatile choice for a wide array of industrial applications.

    In summary, the Allen-Bradley 1746-N18 Analog Input Module is an indispensable component for any industrial control system seeking high accuracy, reliability, and seamless integration with existing infrastructure.
