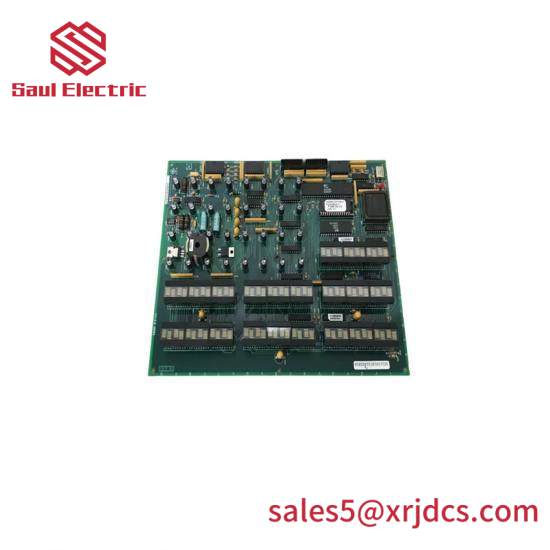

GE DS200KLDCG1AAA – Advanced LED Display Board for Turbine Control Systems

Model Number:DS200KLDCG1AAA

Manufacturer:General Electric

Functional Description:LED/Key/Display Board

Series:Mark V

Number of LEDs:32

Character Displays:21 x 4-character

Jumper:1 x 40-pin connection

Coating:Normal

Revisions:3

Backward Compatibility:First two revisions

Assembly Type:Normal

Operating Temperature:-40°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:158mm x 100mm

Weight:200g

    The DS200KLDCG1AAA is an essential part of the GE Mark V Turbine Control System, designed to enhance operational efficiency and safety in industrial settings.

    Equipped with 32 LEDs and twenty-one 4-character displays, this board offers a comprehensive overview of system performance, making it indispensable for maintenance and monitoring tasks.

    Featuring a normal coating for durability and reliability, this PCB ensures consistent performance under challenging industrial conditions.

    With the option to customize behavior through a single jumper switch, users can tailor the display’s function according to specific operational needs, enhancing adaptability and flexibility.

    Comprehensive documentation accompanies the DS200KLDCG1AAA, guiding users through its setup, usage, and maintenance processes, ensuring seamless integration into existing systems.
