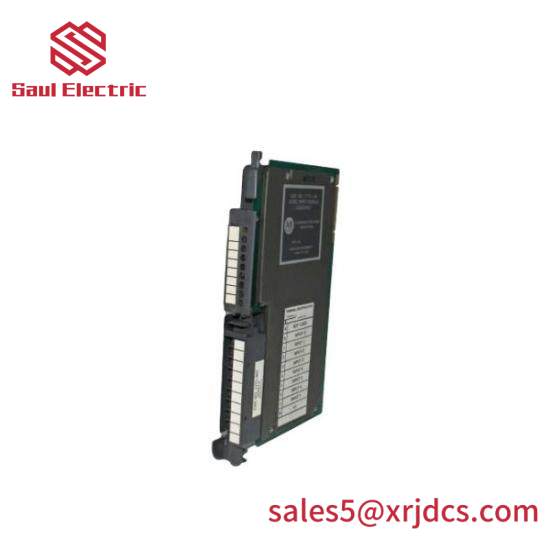

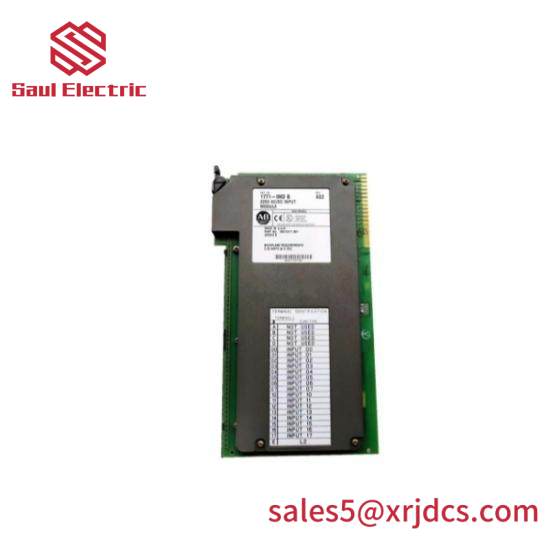

GE Intelligent Platforms 1771-IMD PLC-5 Digital Input Module, High Performance, Industry Standard

Module Type:Digital Input

Model:1771-IMD

Manufacturer:AB

Operating Temperature:-40°C to +70°C

Power Consumption:Less than 0.15W

Input Current:10mA per channel

Communication Interface:RS-485 Modbus RTU

Number of Inputs:16

Connectivity:DB9 connector

Dimensions:132mm x 100mm x 60mm

Weight:0.4kg

    The 1771-IMD module from Rockwell Automation is a robust addition to any industrial control system, designed for seamless integration with Rockwell’s versatile Allen-Bradley PLC series. It provides high-speed digital input processing, enabling faster response times and improved system performance.

    Each of the 16 digital inputs can handle a wide range of signals, making it suitable for diverse applications across various industries. Its compatibility with 24V DC ensures efficient power consumption and reliability.

    Featuring a compact design that fits within standard control cabinets, this module optimizes space without compromising functionality. It is equipped with an RS-485 interface for easy communication with other devices in the system.

    The 1771-IMD module operates within a temperature range of -10°C to +60°C, ensuring reliable operation under varying environmental conditions. Its IP20 rating safeguards against dust and light splashes, enhancing its durability in industrial settings.

    With its high sampling rate of 1ms, this module ensures accurate and timely data acquisition, critical for real-time monitoring and control. It’s ideal for applications requiring precise digital input management, such as machine automation, process control, and safety systems.
