GE SR489-P5-LO-A20-E

The GE SR489-P5-LO-A20-E is a generator management relay from the Multilin 489 series, designed by General Electric (GE) for comprehensive protection, control, and monitoring of synchronous and induction generators. Below is a detailed overview of its technical specifications, based on the search results.

⚡ 1. Basic Product Overview

• Model: SR489-P5-LO-A20-E
• Manufacturer: General Electric (GE)
• Application: Primarily used for protecting and managing synchronous and induction generators in various industrial settings, including cogeneration applications. It operates at frequencies of 25 Hz, 50 Hz, or 60 Hz .

? 2. Key Technical Specifications

? Electrical Parameters

• CT (Current Transformer) Secondary: 5 A
• Power Supply:
  • LO Control Power:
    • • DC: 20–60 V
      • AC: 20–48 V (at 48–62 Hz)
• Analog Output: 4–20 mA
• Frequency Range: 0.00–90.00 Hz
• Zero-Sequence Voltage Range: 0–25,000 V
• Power Factor Range: 0.01 (leading) to 1.00 (lagging)
• Reactive Power (Mvar) Range: -2.00 to 2.00 times rated voltage

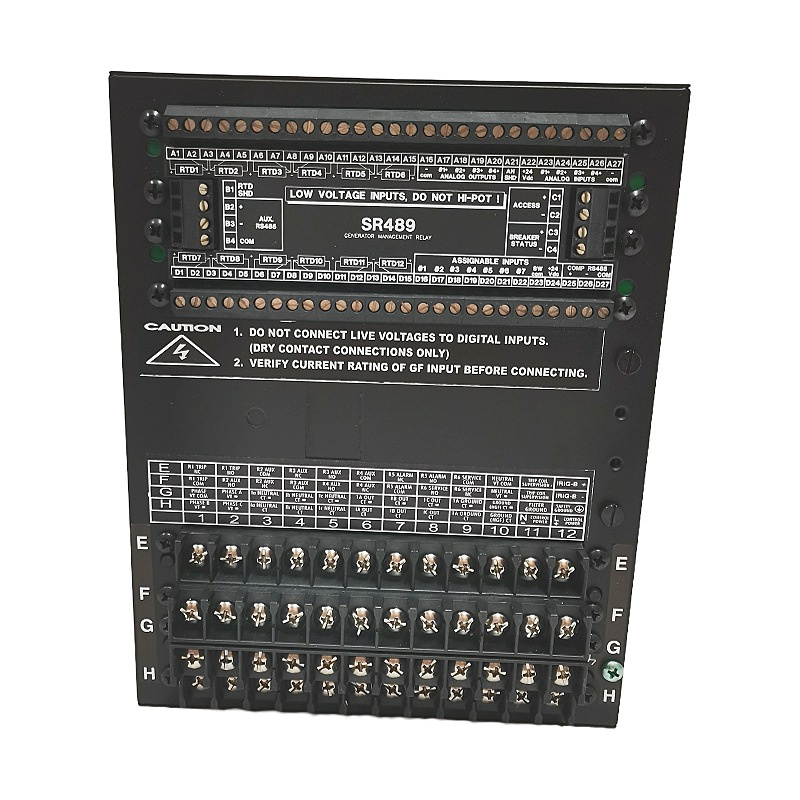

? Inputs and Outputs

• RTD Inputs: 12 field-programmable RTD inputs for thermal monitoring (e.g., stator and bearing temperature) .
• Digital Inputs:
  • 9 digital inputs (2 predefined, 7 assignable) .
  • Predefined functions include breaker status (52/a or 52/b) and setpoint access .
• Analog Inputs: 4 isolated 4–20 mA analog inputs (configurable for 0–20 mA or 0–1 mA) .
• Output Relays: 6 Form-C output relays rated for:
  • 10 A at 30–250 V AC/DC
  • 30 A (for 0.2 seconds)
• Analog Outputs: 4 programmable analog outputs (4–20 mA or 0–1 mA, depending on order) .

? Communication Interfaces

• RS485 Ports: 2 ports supporting Modbus RTU or DNP 3.0 protocols (or both), up to 19,200 bps .
• RS232 Port: 1 front-facing port for local communication .
• Ethernet: Optional 10BaseT Ethernet support .

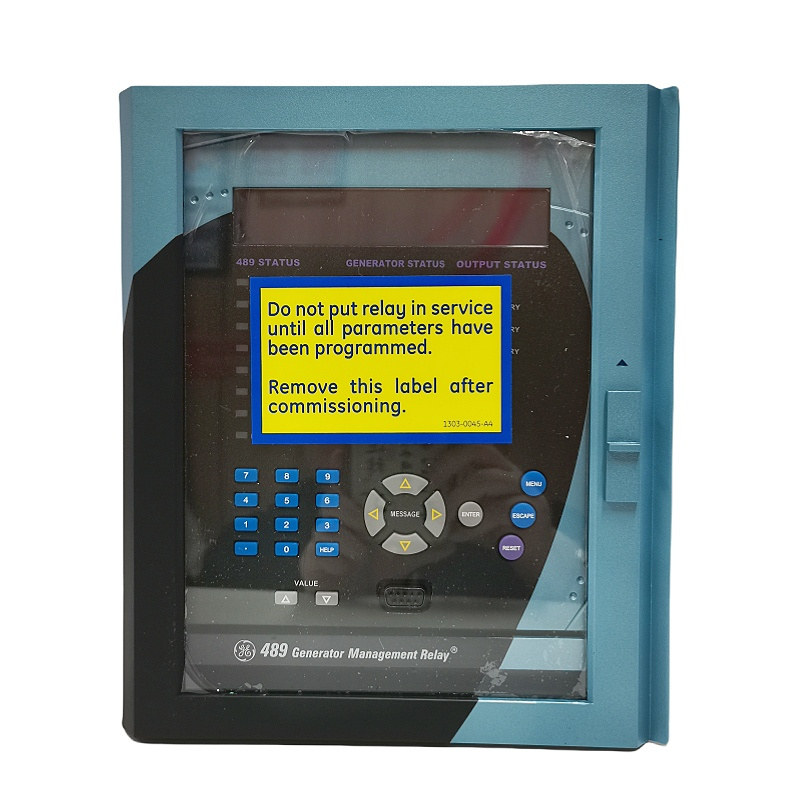

? 3. Display and User Interface

• Display: 40-character vacuum fluorescent display (VFD) for viewing values, diagnostics, and setpoints .
• Front Panel Features:
  • Numeric keypad, status LEDs, value adjustment keys, and control buttons (e.g., Reset, Enter, Menu navigation) .
  • Allows full control without an external computer .
• Status Indicators: 22 front-panel LEDs for system status .

Main Brand:

ABB       Allen-Bradley      Alstom      Bently       GE      MOOG

Schneider   Woodward   HIMA   Honeywell   Emerson   Foxboro

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Ship to you via Fedex/DHL/TNT/UPS/EMS

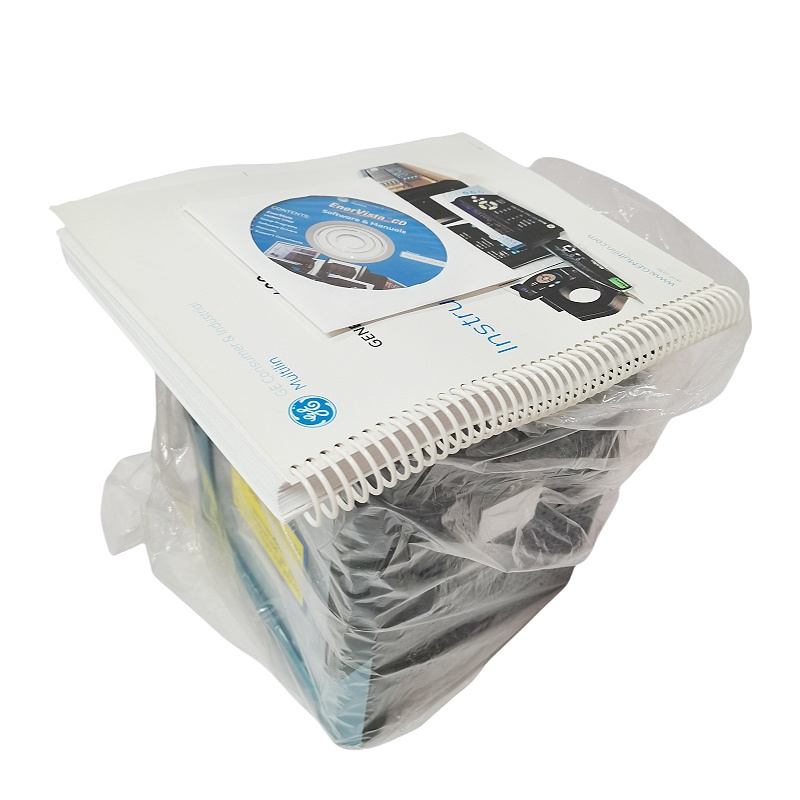

•Package: Original packing with cartons
