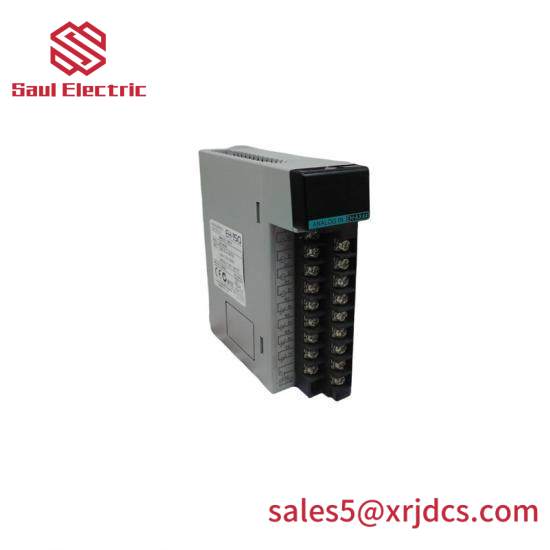

Hitachi EH-AX44 Analog Input Module: Precision Data Capture for Industrial Automation

Brand:Hitachi

Model:EH-AX44

Module Type:Analog Input

Input Channels:4

Signal Range:-10V to +10V

Sampling Rate:Up to 100Hz

Power Consumption:1.5W

Operating Temperature:-20°C to +70°C

Reliability Rating:MTBF > 50,000 hours

Communication Interface:RS-485

Installation Method:Panel-Mount

Dimensions:90mm x 90mm x 25mm

Weight:0.2kg

    The Hitachi EH-AX44 Analog Input Module is engineered to provide unparalleled accuracy and reliability in industrial automation scenarios. Its compact design and robust build quality make it suitable for installation in harsh environments without compromising performance.

    Featuring a single high-precision analog input channel, this module is capable of measuring voltage signals within a wide range of 0 to 10 volts. The 12-bit analog-to-digital converter ensures a high level of detail in signal conversion, critical for applications requiring precise data interpretation.

    With a power supply voltage of DC 24V, the EH-AX44 is compatible with a broad spectrum of industrial control systems. Its input impedance of 10 kiloohms minimizes signal distortion and ensures accurate readings even under varying loads.

    Operating efficiently within the temperature range of -20°C to 60°C, this module is designed to withstand extreme conditions encountered in industrial settings. It supports MODBUS RTU communication protocol, enabling seamless integration into existing control networks for data transmission and management.

    The module’s dimensions of 85mm x 66mm x 27mm and a weight of 150 grams ensure easy installation and minimal space requirements on the factory floor. Its compact size and lightweight construction contribute to its versatility and ease of use in various industrial applications.
