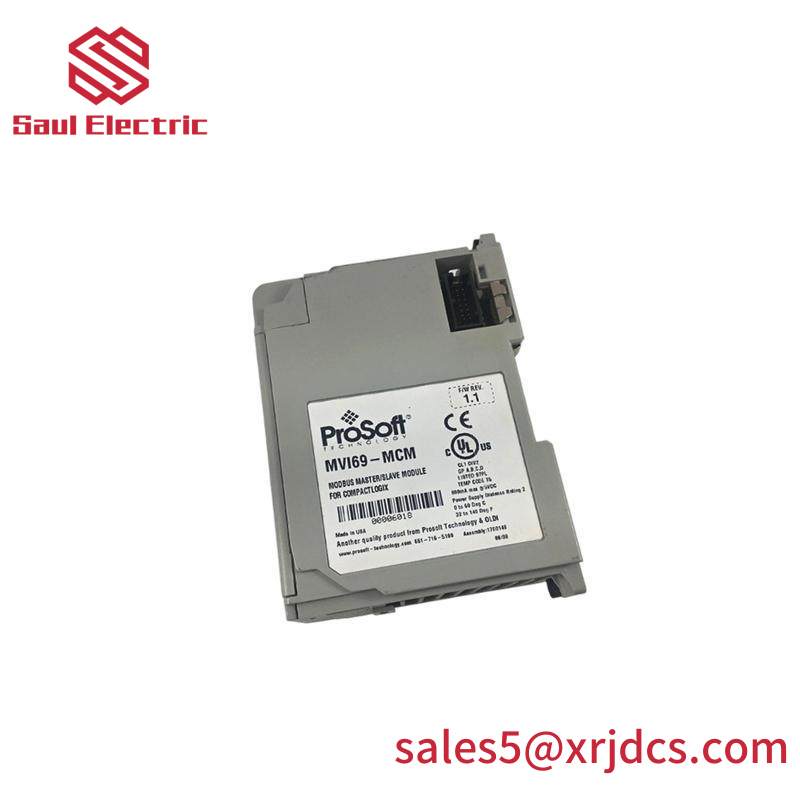

Prosoft MVI69-MCM ASCII Communication Module

I/O Size:0/120/240 – 16 bit integers

Communication Parameters:Baud Rate: 110 to 115K baud, Stop Bits: 1 or 2, Data size: 7 or 8 Bits, Parity: None, Even, Odd

Floating Point Data:Supported, including configurable support for Enron, Daniel® and other implementations

Protocol Interface:Modbus Master/Slave

Module Compatibility:CompactLogix processors with 1769 I/O bus capability version 16 and greater (MicroLogix 1500 not supported)

    The Prosoft MVI69-MCM Communication Module is engineered with licensed backplane technology, ensuring reliable operation and compatibility with Rockwell Automation’s extensive network. This module seamlessly integrates as a Generic 1769 series component, offering a comprehensive solution for industrial communication.

    Equipped with an intuitive add-on instruction feature, this module creates User Datagram Tables (UDTs) for defining logical relationships between inputs, outputs, status, and control data. This feature streamlines data management and enhances operational efficiency.

    Utilizing the Modbus Master/Slave protocol interface, the Prosoft MVI69-MCM enables flexible and robust communication within complex industrial networks. It supports emulating both Modbus Master and slave devices, catering to diverse application needs.

    Accessible diagnostic data in RSLogix 5000 controller tags provides real-time insights into node health, empowering users to make informed decisions about system maintenance and troubleshooting. This ensures continuous operation and minimizes downtime.

    Designed for compatibility with CompactLogix processors featuring 1769 I/O bus capability version 16 and above, the MVI69-MCM is not compatible with MicroLogix 1500 models. This ensures optimal performance tailored to specific automation requirements.
