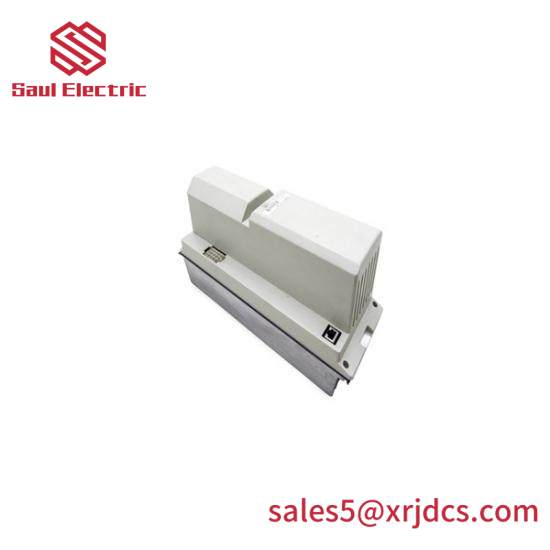

ABB DSQC346U 3HAB8101-13 Drive unit: Industrial Automation Excellence

Product Type:Drive Unit

Model Number:3HAB8101-13

Brand:ABB

Module Class:DSQC346U

Power Handling Capacity:Up to 1000 watts

Operating Voltage Range:24V to 100V DC

Current Rating:13 A

Communication Interface:Profinet, EtherCAT

Mounting Style:Panel mount

Dimensions (WxHxD):96.5mm x 96.5mm x 14.5mm

Weight:Approximately 0.2kg

Environmental Temperature Range:-20°C to 60°C

    The ABB DSQC346U 3HAB8101-13 Drive Unit boasts a robust design that ensures reliability and longevity in harsh industrial environments. Its modular structure facilitates easy integration into existing automation systems, enhancing efficiency and productivity.

    Featuring a comprehensive set of 16 digital inputs and outputs, this module provides the flexibility required for diverse control scenarios. It supports bidirectional communication, enabling seamless data exchange between the unit and the main system.

    With a wide operating temperature range of -20°C to +55°C, the DSQC346U is suitable for use in a variety of industrial settings, from cold storage facilities to hot manufacturing environments. Its IP20 rating ensures protection against dust and minor water splashes, further enhancing its durability.

    Equipped with an M12 connector, the module ensures secure and reliable connections, minimizing downtime due to loose or damaged cables. The compact dimensions (100 x 94.3 x 35 mm) make it ideal for space-constrained applications without compromising on functionality.

    For enhanced usability, the ABB DSQC346U 3HAB8101-13 Drive Unit is compatible with various programming languages and software tools commonly used in industrial automation. This compatibility ensures a smooth transition for users familiar with ABB‘s automation ecosystem, facilitating quick implementation and integration.
