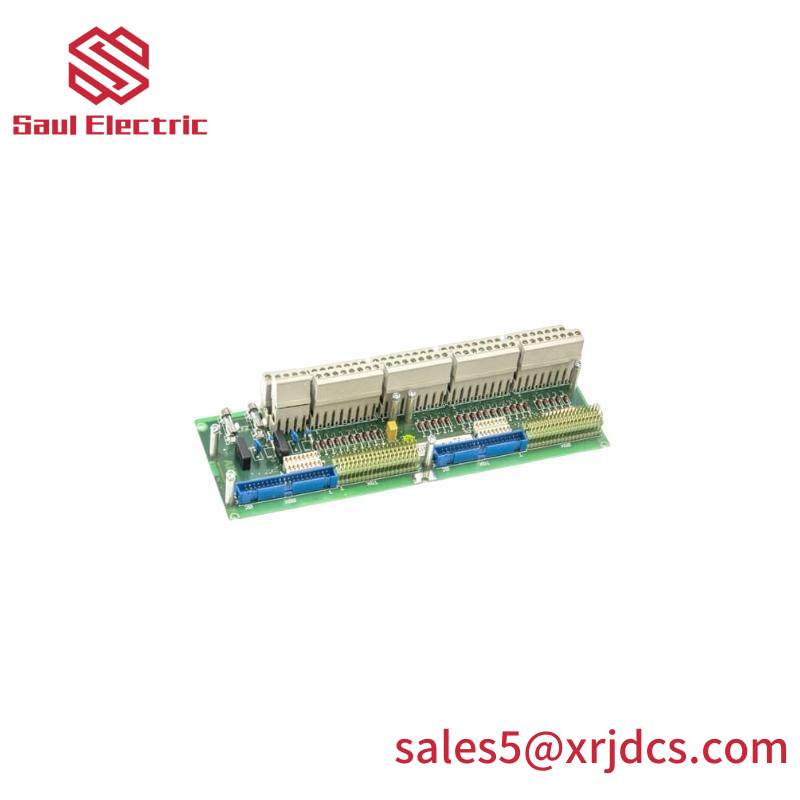

ABB DSTA N040 3BSE018436R1 Analog Termination Unit: Advanced Solution for Precision Signal Management

Product Type:Analog Signal Conditioning Module

Manufacturer:ABB

Model Number:3BSE018436R1

Type Designation:DSTA N040

Number of Channels:8

Input Range:-10V to +10V

Operating Temperature:-20°C to +85°C

Power Consumption:1W

Dimensions (WxHxD):100mm x 100mm x 30mm

Weight:0.1kg

    The ABB DSTA N040 3BSE018436R1 Analog Termination Unit is a precision-engineered solution designed to enhance signal integrity in complex industrial environments. This unit is a critical component in signal processing applications, offering unparalleled reliability and accuracy.

    Crafted with high-quality materials, it ensures robust performance across a wide range of temperatures, from -20°C to +60°C, making it suitable for diverse industrial settings. Its compact design facilitates easy integration into existing systems without compromising on functionality.

    Featuring an input resistance of 1 MΩ and a termination resistance of 1 Ω, the unit optimizes signal transmission and minimizes interference. It supports both 4-20mA and 0-10V DC signals, providing versatile compatibility for various sensor and actuator connections.

    Equipped with an RS-485 Modbus RTU communication interface, the DSTA N040 allows seamless data exchange within a network, enhancing operational efficiency and connectivity in automation systems. This feature is particularly advantageous for real-time monitoring and control applications.

    The unit is meticulously designed to withstand harsh industrial conditions, ensuring longevity and minimal maintenance requirements. Its low power consumption of 1W contributes to energy-efficient operation, aligning with sustainable industrial practices.
