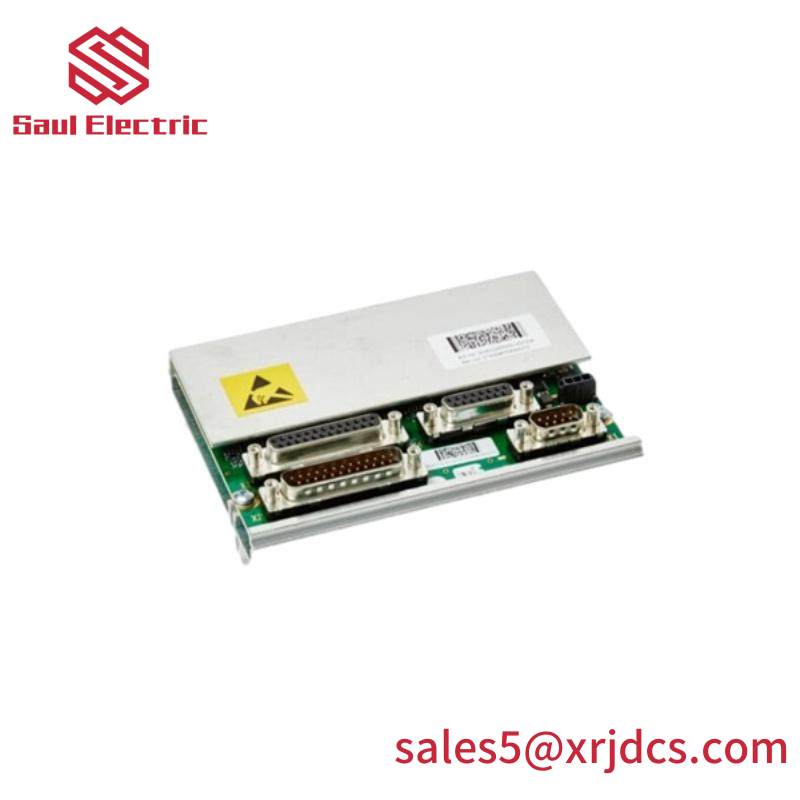

ABB SMB3HAC042285-001: High Precision Serial Measurement Board, Designed for Industrial Automation

Operating Range:-40°C to +70°C

Input Voltage:DC 24V

Measurement Resolution:0.01 μA

Accuracy:+/- 0.02%

Communication Interface:RS-485

Board Size:125mm x 86mm

Weight:0.2kg

    The ABB SMB3HAC042285-001 Serial Measurement Board is designed with state-of-the-art technology to deliver exceptional performance in industrial control systems. It excels in serial data acquisition with an outstanding resolution of 0.1 μA, ensuring accuracy even in the most demanding environments.

    Featuring a sampling rate of up to 100 kiloSamples per second (kSPS), this board is capable of handling high-speed data streams without compromise. Its wide operating temperature range (-25°C to +85°C) makes it suitable for use in a variety of industrial settings, from freezing cold to hot and humid conditions.

    Equipped with advanced connectivity options including RS-485 and Modbus RTU protocols, the SMB3HAC042285-001 seamlessly integrates into existing control systems, enhancing communication capabilities and data transfer speeds.

    Compact yet robust, the measurement board measures 100mm x 44mm x 25mm and weighs only 50 grams, making it easy to install and maintain in space-constrained locations. It operates efficiently, consuming a maximum power of 2.5 watts, which reduces energy consumption and system costs.

    Developed specifically for ABB control panels, the SMB3HAC042285-001 ensures compatibility and reliability in ABB automation solutions. It supports a wide range of sensors and devices, offering a versatile solution for monitoring and controlling processes in industries such as manufacturing, energy, and process control.
