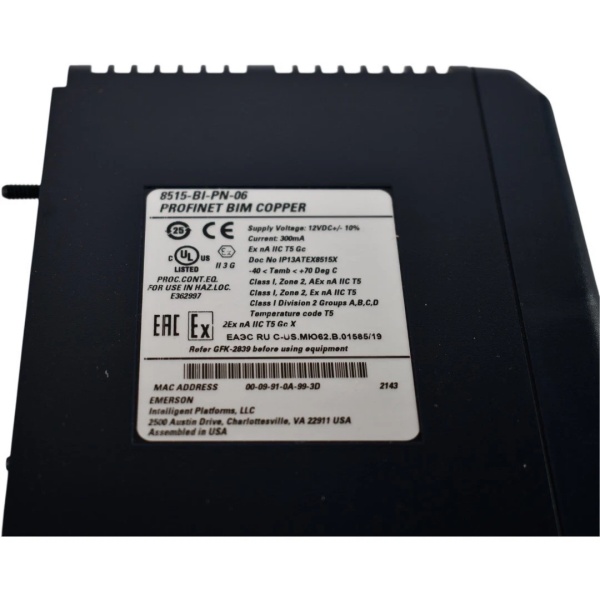

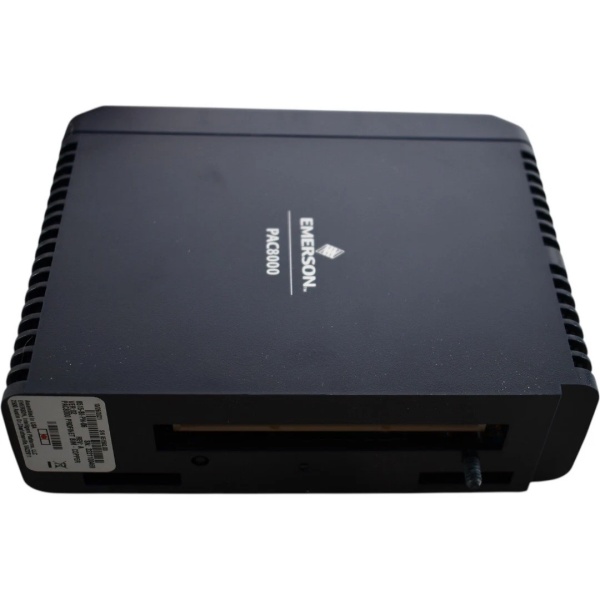

Emerson 8515-BI-PN-06

Emerson 8515-BI-PN-06 Technical Specifications

Item	Description
Model	8515-BI-PN-06 – Emerson Network Interface Module (part of the DeltaV Smart Switch series)
Main Function	Provides 10/100/1000 Mbps Ethernet interfaces for DeltaV control networks; supports gateway functions for industrial communication protocols such as PROFIBUS DP, DeviceNet, HART, and Modbus TCP.
Power Supply	24 V DC (also supports 24 V AC ±10%)
Power Consumption	Maximum approx. 25 VA (including internal switching chip and interface circuitry)
Physical Dimensions	Approx. 73 mm × 138 mm × 115 mm (W × H × D); DIN rail mounting
Weight	≈ 0.8 kg (about 800 g)
Operating Environment	Temperature: -20 °C to +65 °C; Humidity: 0 % – 80 % RH (non-condensing)
Protection Rating	IP 20 (protection against electric shock; suitable for cabinet installation)
Number of Ports	6 Ethernet ports (corresponding to “PN-06” = 6-Port Network); each supports 10/100/1000 Mbps auto-negotiation
Supported Protocols	Ethernet/IP, Modbus TCP, PROFINET, PROFIBUS DP, DeviceNet, HART, OPC UA (via DeltaV software stack)
Mounting Options	DIN rail or 19-inch rack (with optional bracket)
Certifications	CE, UL, CSA; compliant with IEC 61850 and EN 61326 (EMC standards)
Management	Managed through DeltaV Network Device Command Center (NDCC) for automatic discovery, configuration, and firmware updates; supports SNMP v2/v3 for remote monitoring
Optional Accessories	Port mirroring module, fiber converter card, redundant power supply unit (optional)

Conclusion
The Emerson 8515-BI-PN-06 is a Network Interface Module from the DeltaV Smart Switch series.
It provides six Gigabit Ethernet ports, 24 V DC power input, DIN-rail installation, IP20 protection, and a wide operating temperature range, making it suitable for reliable use in industrial automation and DeltaV control networks.
