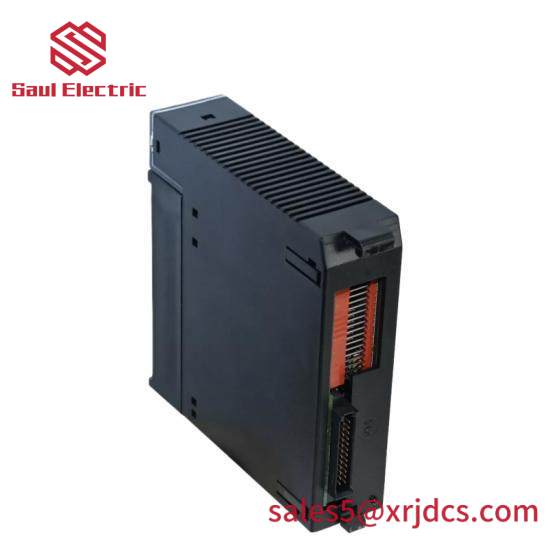

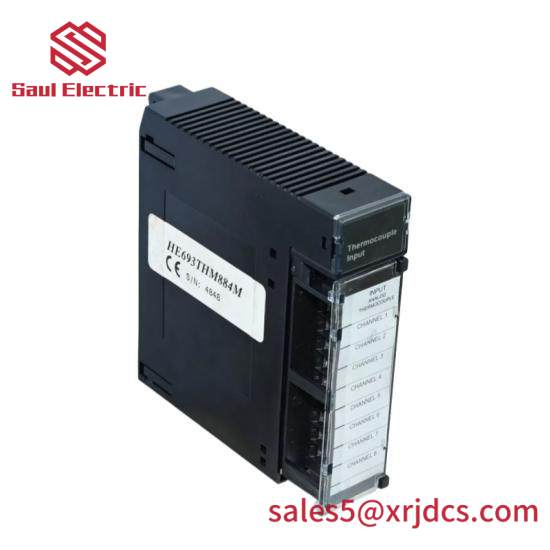

Enhanced GE Fanuc HE693THM884 Thermocouple Input Module for Industrial Control Systems

In stock

The Enhanced Thermocouple Input Module GE Fanuc HE693THM884 is a high-performance solution designed for industrial automation and control systems. It features advanced filtering and alarm functionalities to provide precise temperature measurement and reliable operation.

Manufacturer:GE Fanuc

Model:HE693THM884

Module Type:Thermocouple Input Module (Enhanced)

Channels:8

Isolation Between Channels:N/A

Notch Filter:60 Hz

Open Circuit Alarm:Yes

Resolution:0.5 °C or 0.5°F

Accuracy:±0.5°C, typical (J,K,N,T)

Power Consumption:8%AI, 8%AQ, 16%I

A/D Conversion Type:Integrating

A/D Conversion Time:40 channels per second

Channel to Bus Isolation:Yes

Open Circuit Detection:Yes

Setpoint Alarm:Yes

Internal Power Usage:100 mA@ 5 VDC; 60 mA@ 24 VDC relay

This advanced thermocouple input module is designed for high-reliability applications in industrial environments. It supports up to 8 thermocouples, each channel isolated from the others for superior noise immunity and data accuracy.

The module includes a notch filter at 60Hz, ensuring minimal interference from common power line frequencies. An open circuit alarm feature alerts operators when connections are lost, enhancing system reliability.

With a resolution of 0.5°C or 0.5°F and an accuracy of ±0.5°C, this module provides precise temperature measurement. Its integral ADC conversion time of 40 channels/sec ensures fast response times and real-time monitoring capabilities.

The module is designed with robust materials to withstand harsh industrial conditions. It is compatible with various communication protocols and can be easily integrated into existing control systems.

Installation is straightforward, requiring minimal setup time. This makes it ideal for retrofitting or upgrading older systems without significant downtime.

GE Fanuc HE693THM884
