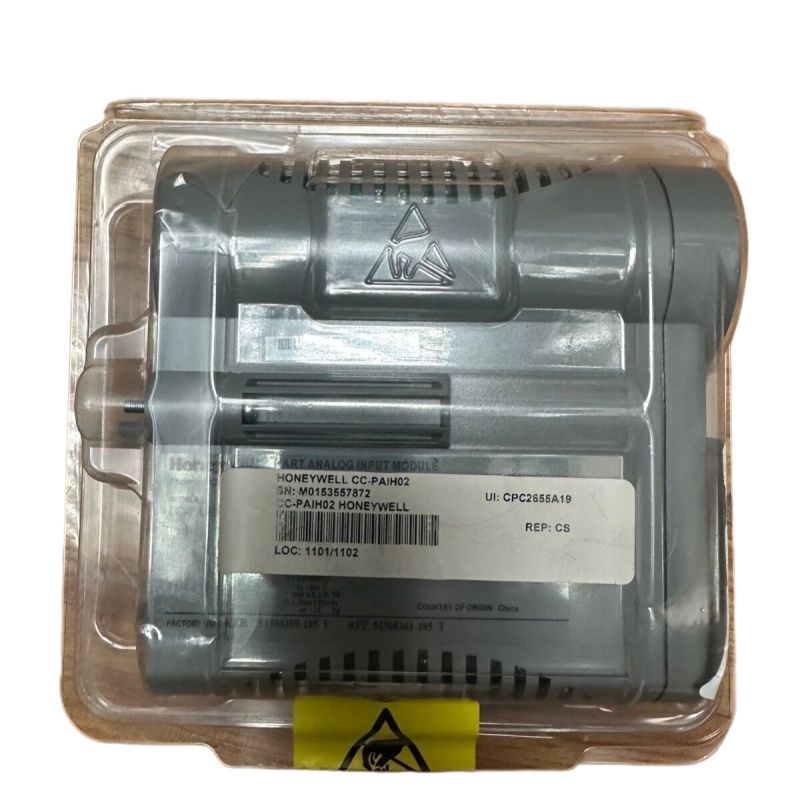

Honeywell CC-PAIH02 HART Analog Input Module

The Honeywell CC-PAIH02 is an advanced analog input module designed specifically for industrial automation applications and equipped with HART communication capability. It is primarily used to measure process variables such as temperature, flow, pressure, and liquid level, and converts analog signals into digital signals for processing by host systems or PLCs.

1. Core Specifications

Communication Interface: HART protocol (supports bidirectional digital communication)
Signal Type: 4–20 mA two-wire (optional 0–20 mA)
Measurement Range: -30°C to 70°C (temperature sensor)
Accuracy: ±0.2°C (average 0.16°C); accuracy up to 0.1°C at 25°C
Response Time: < 1 second; stabilization time after power-on: 100 ms
Operating Power Supply: 12V–24V DC (some sources mention AC 220V, but the module is primarily DC powered)

2. Key Features

Self-Diagnostics:
Built-in comprehensive self-diagnostic functions can detect abnormalities in input signals (such as short circuits or open circuits), making troubleshooting easier.

Line Break Detection:
When the input line is disconnected, the module can quickly detect the fault and trigger an alarm, preventing potential equipment damage caused by signal loss.

Redundant Configuration:
Supports optional redundancy configurations to enhance system reliability and fault tolerance.

Non-incendive Power Design:
The module is designed to operate with non-incendive power sources, making it suitable for use in hazardous areas.

3. Application Scenarios

Process Control:
Widely used in automation process control systems in industries such as oil & gas, chemical processing, pharmaceuticals, and food production.

Asset Monitoring:
Through HART communication, it supports remote configuration and monitoring of field instruments.

Safety Systems:
Suitable for industrial environments that require high reliability and explosion protection.

4. Physical Specifications

Dimensions: Approximately 46.5 mm × 56.5 mm × 31 mm
(Refer to the official product manual for exact dimensions.)

Summary

The CC-PAIH02 is a feature-rich and highly reliable HART analog input module, particularly suitable for industrial automation projects that require high-precision measurements and remote management of field instruments.
