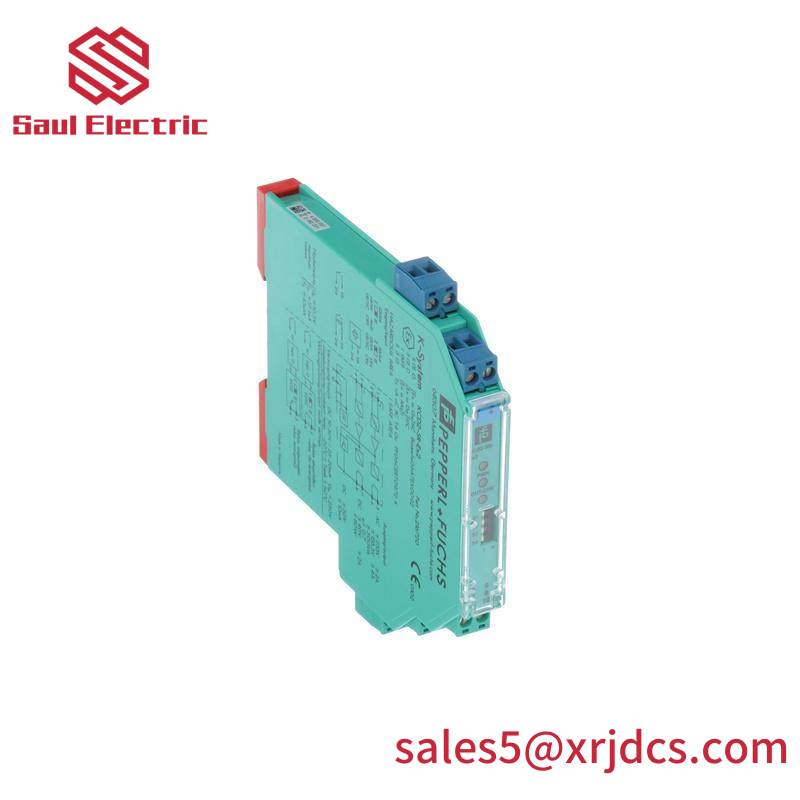

P+F KCD2-SR-EX2 Switch Amplifier: Advanced Industrial Control Solution

Extended Product Type:Switch Amplifier

Product ID:KCD2-SR-EX2

P+F Type Designation:Extended

Features:[“2-channel isolated barrier”,”24 V DC supply (Power Rail)”,”Dry contact or NAMUR inputs”,”Relay contact output”,”Line fault detection (LFD)”]

Housing width:12.5 mm

SIL Compliance:Up to SIL 2 acc. to IEC 61508

Signal Type:Digital Input

Rated Voltage:19 … 30 V DC

Power Consumption:<= 600 mW

Connection:Power Rail or terminals

Mass:~ 100 g

Mounting:DIN rail acc. to EN 60715:2001

    The P+F KCD2-SR-EX2 Switch Amplifier is designed with an advanced 2-channel isolated barrier mechanism, ensuring high-speed, precise switching actions essential for modern automation systems.

    Equipped with a robust 24 V DC supply from the power rail, it guarantees reliable operation even under fluctuating electrical conditions, making it ideal for a wide range of industrial applications.

    Flexible input options through dry contacts or NAMUR inputs allow for compatibility with various sensor types, providing adaptability and convenience in system integration.

    The relay contact output ensures clean signal transmission, minimizing interference and enhancing system performance. The line fault detection feature adds an extra layer of safety, detecting and reporting any faults in the power line.

    With a compact housing width of 12.5 mm, the amplifier is designed for efficient space utilization without compromising on performance. It complies with up to SIL 2 standards according to IEC 61508, ensuring high safety integrity levels in hazardous environments.

    Crafted with durability in mind, this switch amplifier offers low power consumption and comes equipped with screw terminals for secure and easy installation, further enhancing its usability in various industrial setups.
