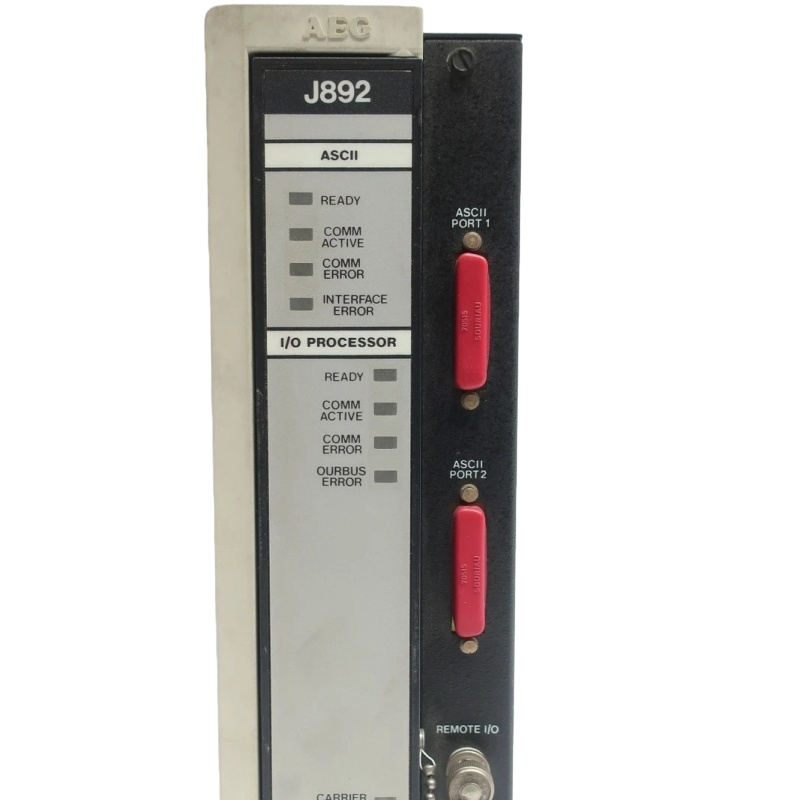

Schneider AS-J892-001 is an industrial automation communication module based on the Modicon 984 series, typically used for remote I/O communication in PLC systems.

Below are the key features and applications of this product:

1. Core Functions

• Communication Protocol:
  This module supports the Modbus RTU protocol, enabling data exchange with various host software (such as WinCC) or subordinate PLC devices.
• Master/Slave Operation:
  It supports Master/Slave operation modes and is typically configured as the Master station in a communication network, responsible for managing and collecting I/O data from slave stations.
• Interface Type:
  Specifically designed for Modicon 984/800 series I/O, allowing connection to remote I/O modules of the 984/800 series.

2. Hardware Specifications

• Power Supply:
  Operates on a 24 V DC power supply, compliant with industrial field voltage standards.
• Connection Method:
  Data communication is performed via an RS485 interface, supporting coaxial cable connections used in the 984/800 series.
• Compatibility:
  Primarily compatible with 800 series I/O modules on the S908 remote I/O network.

3. Application Scenarios

• Remote I/O Acquisition:
  Used to collect distributed digital I/O signals in large plants or installations with long wiring distances.
• PLC Communication Expansion:
  Acts as a communication bridge between the PLC and field I/O modules, expanding the PLC’s control range and number of I/O points.
• Industrial Automation:
  Widely applied in automation systems requiring remote monitoring and control, such as petrochemical, power generation, and manufacturing industries.
