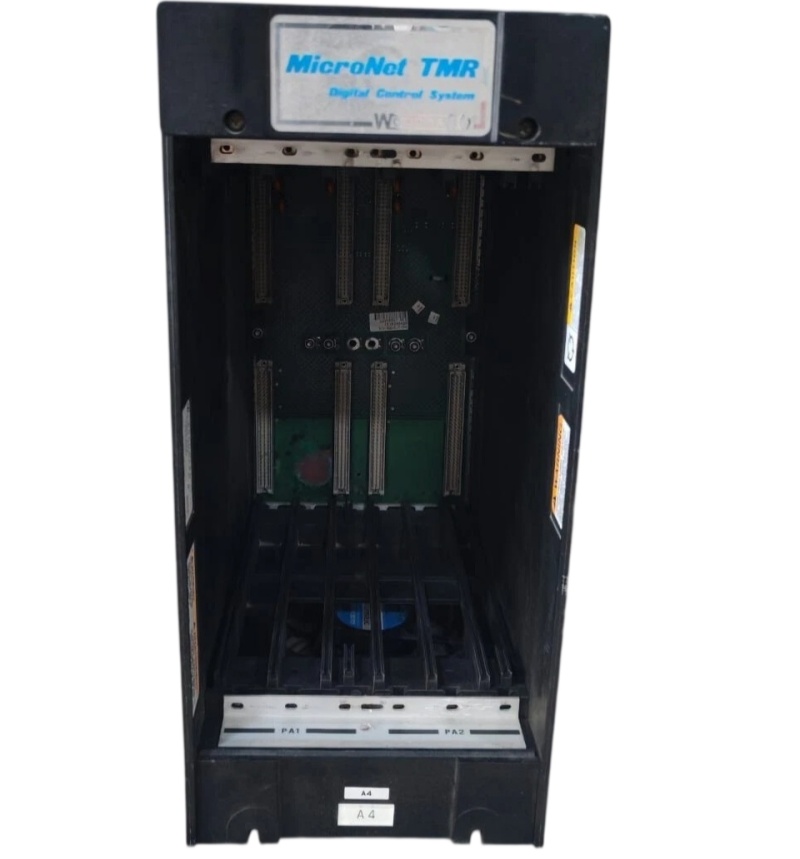

WOODWARD 5453-277 REV B

Product Overview

The Woodward 5453-277 REV B is a triple modular redundant (TMR) power supply chassis built for the Woodward MicroNet™ TMR digital control system. It provides fault-tolerant, uninterrupted power distribution to critical control modules, supporting gas and steam turbine control, power generation packages, and other critical rotating-equipment applications where system availability is paramount.

As a genuine Woodward spare part, the 5453-277 REV B keeps existing MicroNet installations running at original specification, and is a reliable replacement or upgrade option for operators maintaining long-life turbine control assets.

Technical Specifications

Key Features

• Triple Modular Redundant Architecture — delivers fault-tolerant power so a single power module failure does not interrupt control.
• Load Sharing Between Modules — redundant supplies share load seamlessly, with fast failover to maintain continuous operation.
• Broad Input Compatibility — supports low-voltage DC as well as 120 VAC/VDC and 220 VAC/VDC inputs for flexible site deployment.
• MicroNet TMR Native Integration — designed to work within the Woodward MicroNet TMR digital control system, simplifying retrofit and sparing.
• Field-Proven Reliability — built for 24/7 operation in demanding turbine and process environments.

Compatible Systems & Applications

The 5453-277 REV B is intended for Woodward MicroNet TMR based control systems. Typical application environments include:

• Gas and steam turbine speed and load control.
• Generator and excitation control systems.
• Oil & gas and petrochemical rotating-equipment packages.
• Power generation plants requiring high-availability control.
• Marine and industrial drive systems.

Installation Notes

Follow Woodward’s documented installation procedure when mounting or replacing the power supply chassis. Power down the associated control system before removing or inserting power modules, and secure all power and backplane connections according to the MicroNet TMR installation manual. Verify input voltage selection matches the site supply before energizing.

Maintenance Recommendations

Periodically inspect the chassis for dust accumulation, verify cooling fan operation, and confirm all power module indicators show normal status. Keep spare power modules on hand for fast swap-out. During routine maintenance, check that load-sharing status and alarm indicators remain within normal range; address any abnormal indication immediately to preserve system redundancy.

Why Choose This Power Supply Chassis?

For operators of Woodward MicroNet TMR systems, the 5453-277 REV B is a dependable spare and replacement solution. Its redundant, load-sharing design directly supports the high-availability requirements of critical turbine and power control applications, helping to minimize downtime and extend the service life of installed control systems.
